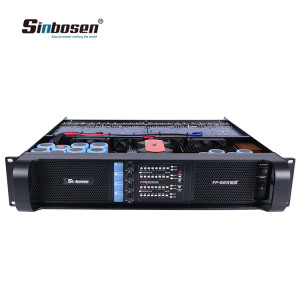

Sinbosen FP8000Q dual 1000 watt RMS 4 channel amp power amplifier

Sinbosen FP8000Q dual 1000 watt RMS 4 channel amp power amplifier

Sinbosen FP8000Q dual 1000 watt RMS 4 channel amp power amplifier
Sinbosen FP8000Q dual 1000 watt RMS 4 channel amp power amplifierSinbosen FP8000Q dual 1000 watt RMS 4 channel amp power amplifierSinbosen FP8000Q dual 1000 watt RMS 4 channel amp power amplifierSinbosen FP8000Q dual 1000 watt RMS 4 channel amp power amplifierSinbosen FP8000Q dual 1000 watt RMS 4 channel amp power amplifier
CategoriesFP POWER AMPLIFIER
AlbumView larger image
BrandSinbosen
ModelFP8000Q
CertificationCE, ROHS, TUV
ApplicationHome Theatre, Karaoke Player, Portable Audio Player, Stage
ColorBlue, Black
8Ω Stereo Power1000W*4
4Ω Stereo Power1600W*4
Special serviceOEM service offered
Sample lead time1-2 day
ClassTD
Channel4 channel power amplifier
Voltage110V or 220V
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal
Download DOC
Update Time2019-11-14
Detail Information
FP8000q power amplifier specification
8Ω Stereo Power (RMS):   1000W X 4
4Ω Stereo Power (RMS):   1600W X 4
8Ω Bridged Power (RMS): 3200W X 2
4Ω Bridged Power (RMS):
3800W X 2

Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz

THD 20 Hz - 20 kHz for 1 W: <0.1%

Signal-to-Noise Ratio: >112 dBA

Channel separation (Crosstalk) at 1 kHz: >70 dB

Input Connectors (per channel): 3-pin XLR, electronically balanced

Output Connectors (per channel): Binding Posts 2-pole

Class: TD

TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input

Operating voltage, 220 V / 110 V nominal: 180-240 V / 90-130 V selectable

Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm

Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB
Sinbosen Audio FP SERIES Power Amplifier
FP Series
FP7000
FP9000
FP14000
FP6000Q
FP10000Q
FP20000Q
8Ω Stereo Power(RMS)
1500WX2
1800WX2
2400WX2
625WX4
1300WX4
2250WX4
4Ω Stereo Power(RMS)
2800WX2
3000WX2
4400WX2
1300WX4
2100WX4
4000WX4
2Ω Stereo Power(RMS)
3500WX2
4500WX2
7000WX2
1500WX4
2500WX4
4500WX4
8Ω Bridged Power(RMS)
5600W
6000W
8800W
2500WX2
4200WX2
8000WX2
4Ω Bridged Power(RMS)
7000W
9000W
14000W
3000WX2
5000WX2
9000WX2
