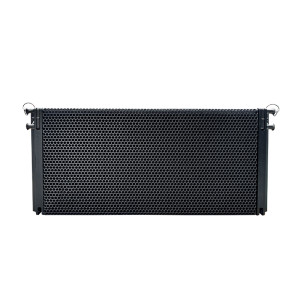

3 way dual 10 inch audio line array speaker

Categories	LINE ARRAY SPEAKER
Brand	Sinbosen\| Audio sound system manufacturer
Model	VT-08
Type	3-way passive
Components	2 x 10"/1 x 8"/2 x 1.4"
Dispersion	80°
SPLmax	142 dB
Weight	34 kg / 75 lb
Download
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

3-way passive line array loudspeaker
Frequency response (-5 dB standard)	67 Hz - 18 kHz
Maximum SPL	142 dB
Nominal impeadance	8 Ω
Power Handling Capacity (RMS/Peak 10ms)	500/2000 W
Nominal dispersion angle (horizontal)	80°
Splay angle settings	0° - 14° (1° increment)
Components	2 x 10" driver / 1 x 8" driver
	2 x 1.4" exit compression driver
	passive crossover network
Dimensions (H x W x D)	310 x 700 x 460 mm 12.2 x 27.5 x 18"
Weight	34 kg/75 lb

FEATURE

●High performance 3-way passive line array speaker

●The cross-coupling design enables smooth superposition of adjacent frequency bands, and an exceptional 80° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz.

●Can form a vertical line array suspension with up to 24 speakers.

●It can form an independent line array system, or can be combined with multiple VT-SUB speakers to form a system.

●The VT-08 cabinet is made of high-quality Russian plywood, and the surface is coated with polyurea paint, which is waterproof, high temperature resistant and impact resistant.

●The front panel of the speaker is protected by a hard metal grille with acoustically transparent foam behind the grille.

●There are handles on the sides, and two additional recessed handles are provided at the bottom of the rear of the cabinet.

DETAIL
