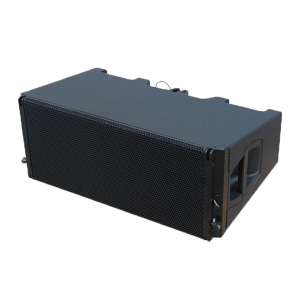

Dual 8 inch 2-way passive line array speaker professional

Specification

Type

High performance 2-way passive line array loudspeaker

Frequency response (-5 dB standard)

54 Hz - 19 kHz

Maximum SPL

139 dB

Nominal impedance

8 Ω

Power handling capacity (RMS/peak 10 ms)

400/1600W

Nominal dispersion angle (horizontal)

80°

Splay angle settings

0° - 14° (1° increment)

2 x 8" driver with neodymium magnet

Components

1.4" exit compression driver

passive crossover network

Connections

2 x NLT4 F/M
optional 2 x NL4 or 2 x EP5

Dimensions (H x W x D)

257 x 630 x 375 mm
10 x 24.8 x 14.8"

Weight

20 kg/44 lb
