Private model new panel 2 channel 1000w class D digital K-1000 audio digital power amplifier

Private model new panel 2 channel 1000w class D digital K-1000 audio digital power amplifier

Private model new panel 2 channel 1000w class D digital K-1000 audio digital power amplifier
Private model new panel 2 channel 1000w class D digital K-1000 audio digital power amplifierPrivate model new panel 2 channel 1000w class D digital K-1000 audio digital power amplifierPrivate model new panel 2 channel 1000w class D digital K-1000 audio digital power amplifierPrivate model new panel 2 channel 1000w class D digital K-1000 audio digital power amplifier
Categories1U DIGITAL AMPLIFIER
AlbumView larger image
BrandSinbosen
ModelK-1000
Stereo/output power 8Ω/1KHz1000Wx2
Stereo/output power 4Ω/1KHz1500Wx2
Bridge/output power 8Ω/1KHz3000W
Bridge/output power 4Ω/1KHz4000W
THD(10% -1KHz)<0.1%
Net weight3.8Kg
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal
Download DOC
Update Time2018-12-10
Detail Information

K1000 Digital Power Amplifier Specification

Stereo/output power 8Ω /1KHz: 1000Wx2

Stereo/output power 4Ω /1KHz: 1500Wx2

Stereo/output power 2Ω /1KHz: 2000Wx2

Bridge/output power 8Ω /1KHz: 3000W

Bridge/output power 4Ω /1KHz: 4000W

Frequency Response(8Ω/ 100mS/second): 20Hz-20KHz±1dB

THD(10% -1KHz): <0.1%

Speed rate(1KHz): >20V/μs

Noise insulation factor(1KHz): >250

Dynamic range: ≥95dB

Signal-to-noise ratio: ≥95dB

Input sensitivity (1KHz): 2Vrms

Input impedance: 20K(balance)/ 10K(imbalance)

Net weight: 3.8Kg


Features: safety performance:

1: Use NTC boot soft start.

2: With PFC automatic voltage regulator circuit.

3: Each channel has independent overpressure and overheating.

4: load short-circuit protection.

5: There is an automatic limiting function to prevent damage to the sounder.


Performance characteristics:

1. Volume step control.

2. Balanced input XLR stereo (two channels), stereo and bridge modes of operation.

3. Independent limiting, overload, overheating and short protection circuit.

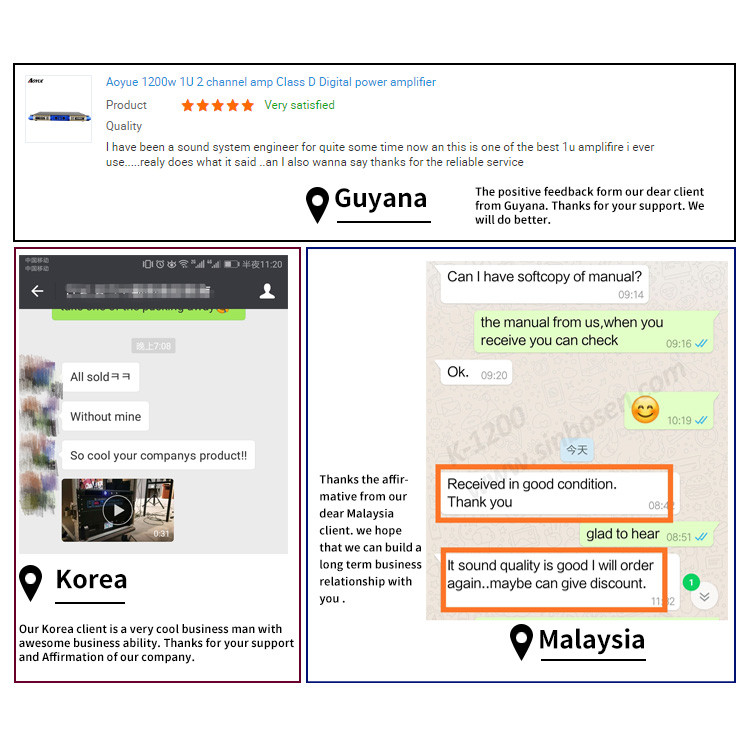

Clients feedback

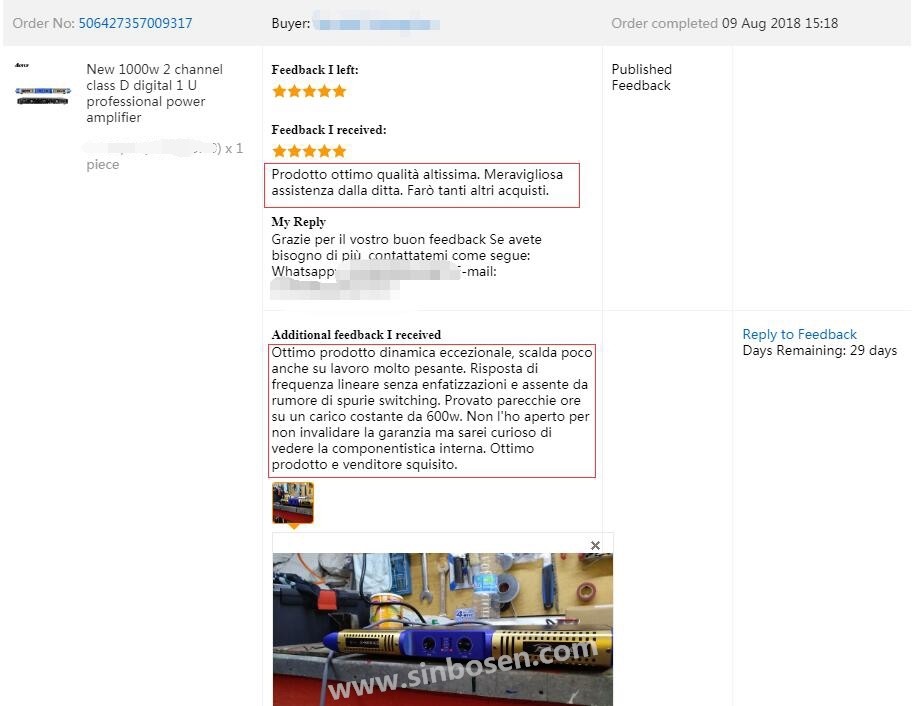

Feedback from Italy client: " Prodotto ottimo qualità altissima. Meravigliosa assistenza dalla ditta. Farò tanti altri acquisti. Ottimo prodotto dinamica eccezionale, scalda poco anche su lavoro molto pesante. Risposta di frequenza lineare senza enfatizzazioni e assente da rumore di spurie switching. Provato parecchie ore su un carico costante da 600w. Non l'ho aperto per non invalidare la garanzia ma sarei curioso di vedere la componentistica interna. Ottimo prodotto e venditore squisito."
