Sinbosen Point source speaker T-24N and subwoofer BT-30
T-24N: Precision-Designed Two-Way Point-Source Speaker
This two-way system combines a 12-inch low-frequency driver with a 1.4-inch high-frequency compression driver, achieving impressive acoustic performance within a compact enclosure. The enclosure is constructed from 18mm birch plywood with internal reinforcement, ensuring sufficient rigidity while controlling weight and reducing resonance-induced coloration. The mid-low frequency transition is natural, and the high frequencies are delicate and not harsh, with a maximum sustained SPL of 132dB.
| Drivers | LF: 2 × 12“
HF: 1 × 1.4“ exit with 3" diaphragm | |||||
| Frequency range | 65 – 18000 Hz | |||||
| Power capacity program / peak | 1400 / 2400 W (bi-amp LF), 220 / 400 W (bi-amp HF)
1400 / 2400 W (passive) | |||||
| Coverage (h × v) | 60° × 40° or 90° × 50° HF-horn, exchangeable, rotatable | |||||
Sensitivity 1 W / 1 m | 107 dB (bi-amp LF), 112 dB (bi-amp HF)
110 dB (passive) | |||||
SPLmax / 1 m | 143 dB | |||||
Dimensions (H × W × D) | 706 × 440 × 440 mm | |||||
Weight | 33 kg | |||||
Options | Polyurea coating, black | |||||
BT-30 Subwoofer: Deep and Precise Low-Frequency Extension
The subwoofer design features dual 15-inch drivers loaded with a hybrid horn, allowing 35 Hz sound waves to escape as plane waves, resulting in concentrated energy density, efficient power conversion, a maximum SPL of 131dB, a precisely tuned bandpass design providing a clean and powerful low-frequency response, multi-functional connectivity options supporting parallel connections and system integration, a robust touring-grade enclosure construction, and professional handling accessories.
Drivers | 2 × 15" | |||||
Frequency range | 35 – 200 Hz | |||||
Power capacity program / peak | 2000 / 4000 W | |||||
Impedance | 8 Ω | |||||
Sensitivity 1W / 1 m | 97 dB | |||||
SPLmax / 1 m | 133 dB | |||||
Connection | NL4 2± | |||||
Dimensions (H × W × D) | 706 × 446 × 800 mm | |||||
Weight | 38,7 kg | |||||
Finish | Polyurea coating, black | |||||

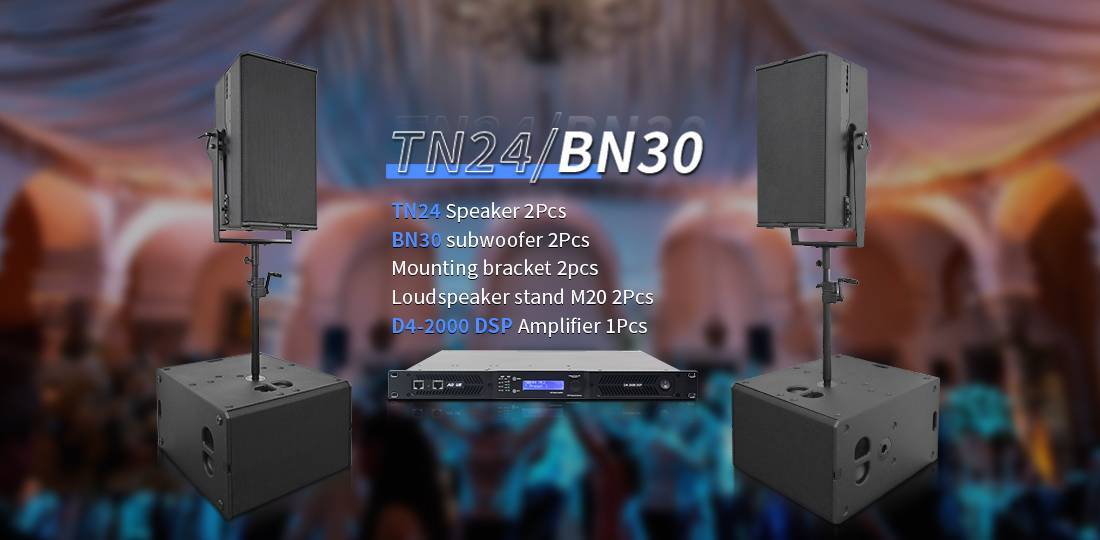

T-24N and BT-30 combination：
Precise Frequency Response Tuning: The frequency response of the two enclosures is optimized and matched, with the T24N's solid low-frequency limit (55Hz) and the B30's smooth high-frequency roll-off (150Hz) forming a natural overlap region, ensuring a seamless transition across the entire frequency range.
Sound Field Consistency Guarantee: The T24N's point source characteristics ensure accurate projection of the mid-high frequencies, while the B30's directivity control (especially in a cardioid configuration) optimizes low-frequency coverage. Together, they provide consistent frequency balance and sound image localization throughout the listener area from 40Hz to 20kHz.
Power and Dynamics Balance: The T24N's 600W low-frequency power and the B30's 1600W processing capability create a reasonable gradient, providing a system peak SPL of over 135dB while maintaining ample dynamic headroom to handle transient peaks.
