Sinbosen DSP D4-2000 power amplifier Driving TN24 and BT-30

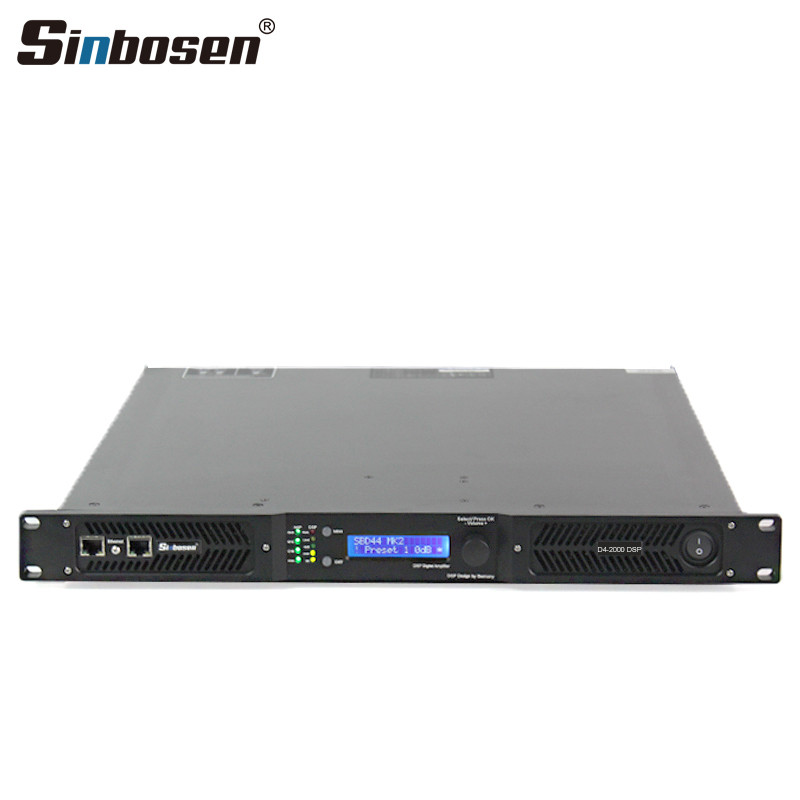

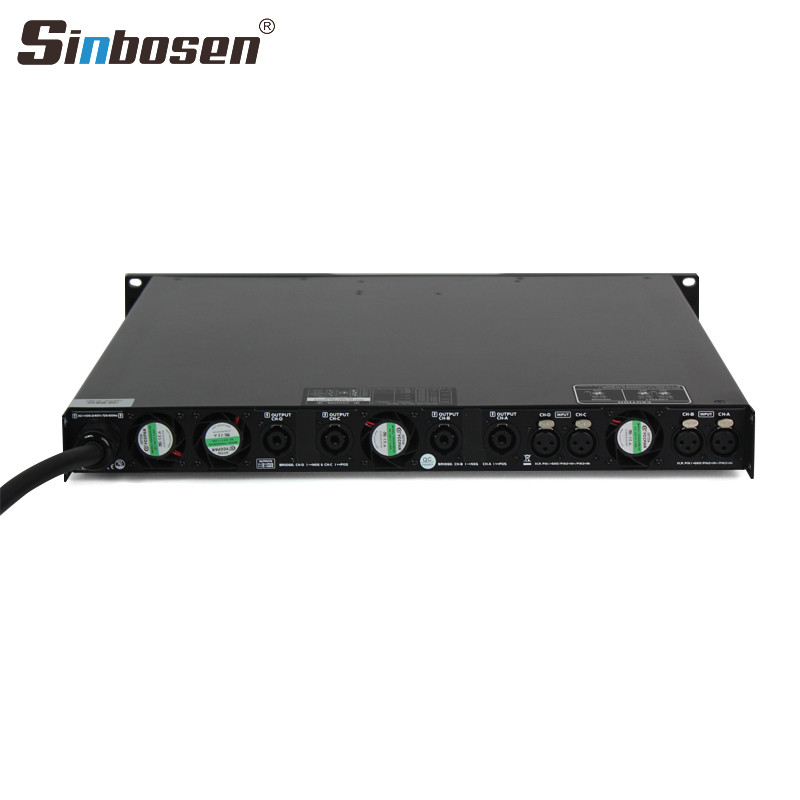

The D4-2000 DSP is a best-selling model in Sinbosen's D-Series of digital amplifiers, featuring high-efficiency Class D digital amplification technology.
Product Advantages of the DSP D4-2000:
Ultra-High Power Output: 2000W × 4 channels at 8Ω Stereo; 3400W × 4 channels at 4Ω Stereo; 4760W × 4 channels at 2Ω Stereo—capable of stably driving low-impedance loads.
Bridged Mode: 6800W × 2 channels at 8Ω Bridged; 9520W × 2 channels at 4Ω Bridged—meeting the demands of high-power applications.
Ultra-Slim 1U Chassis: Compact dimensions of just 483 × 44 × 465 mm and a weight of 12 kg—significantly saving rack space and reducing shipping costs.
Wide Voltage Input: 90–260 VAC / 50–60 Hz universal power supply—adaptable to a wide variety of performance environments.
The D4-2000 DSP version features the German ALLDSP ALLControl system, supporting multi-platform remote control across Windows, Mac, and iOS:
64-bit Multi-Mode DSP Processor: 4 inputs and 4 outputs, equipped with 4 × 144-tap FIR filters
100 Preset Storage Slots: Enables rapid switching between different scene configurations
5-Band Group EQ + 10-Band Input/Output EQ: Allows for precise tonal fine-tuning
Crossover Filters: Supports various types, including Linkwitz-Riley, Bessel, and Butterworth
Optional Dante Digital Audio Transmission: Facilitates the integration of networked audio systems

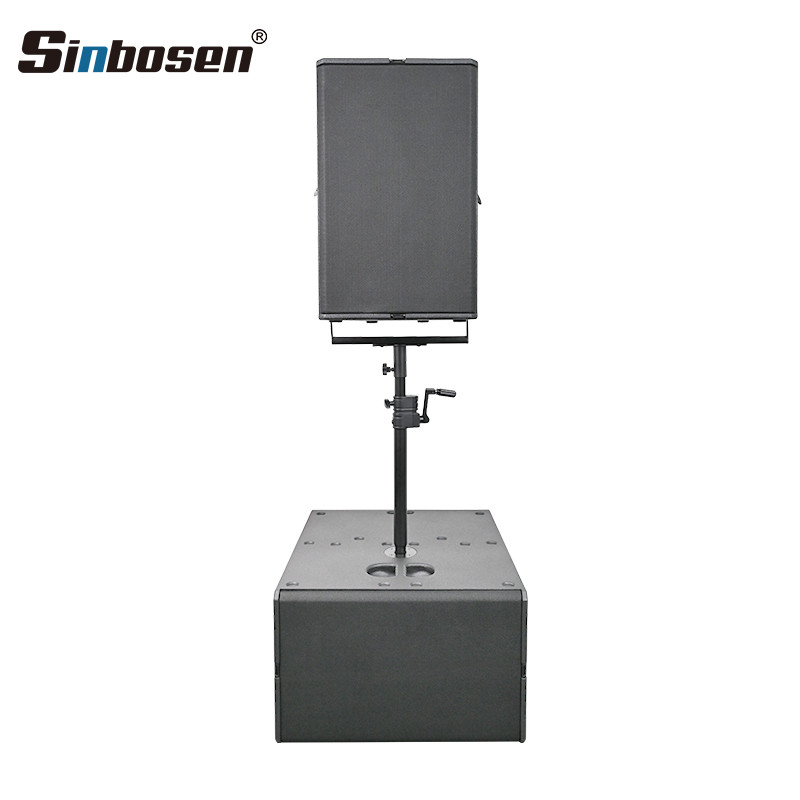

As a professional full-range loudspeaker from Sinbosen, the T-24N is specifically designed for medium-to-large-scale performance venues. Its high-sensitivity drivers and wide frequency response characteristics pair perfectly with the D4-2000 amplifier's high damping factor (≥5000), ensuring crystal-clear audio and abundant dynamic range.

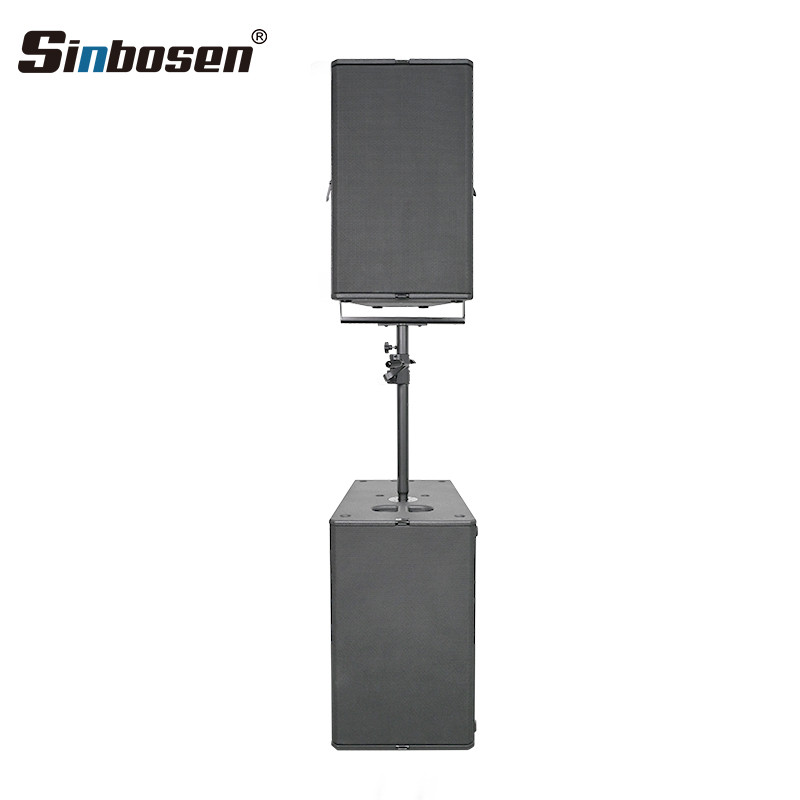

The BT-30 features dual 15-inch high-power woofers, engineered specifically for low-frequency extension and delivering powerful, impactful bass. When paired with the D4-2000 in bridged mode (delivering 6800W per channel at 8Ω), it effortlessly drives the BT-30 to produce deep, authoritative low-frequency performance—making it ideal for stage bass reinforcement, DJ sets, and large-scale parties.
Below are the test results for the DSP D4-2000 paired with the T-24N and BT-30:
Why use the DSP D4-2000 to drive the T-24N and BT-30?
Precise Power Matching: The D4-2000's four-channel design allows it to simultaneously drive two T-24N full-range speakers (in stereo mode) and two BT-30 subwoofers (in bridged mode), achieving comprehensive full-frequency coverage.
Stable 2Ω Operation: Rigorously tested to operate stably over extended periods at a 2Ω load, the D4-2000 provides a reliable foundation for line array systems and multi-speaker parallel configurations.
One-Touch DSP Optimization: Using the ALLControl software, users can pre-configure crossover points, EQ curves, and delay parameters for the T-24N and BT-30, enabling true "plug-and-play" functionality.
Mobile Performance Friendly: Featuring an ultra-slim 1U chassis combined with lightweight loudspeakers, this system significantly reduces transportation and setup costs.
