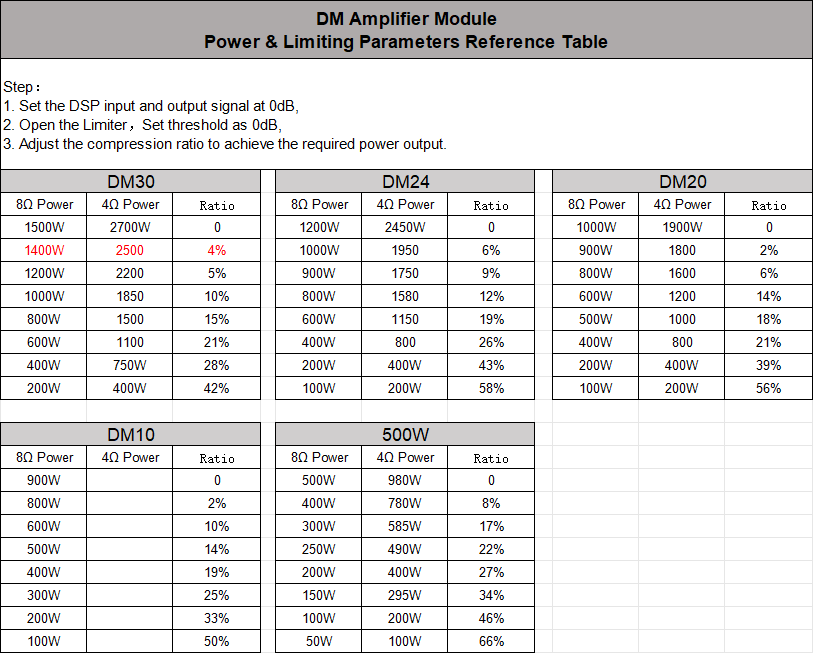

Sinbosen DM Active Amplifier Module Limiter Parameter Settings Reference Table
Reference Table for Limiter Parameter Settings on Sinbosen DM Active Amplifier Modules
The Sinbosen DM series is a line of Class D active amplifier modules featuring built-in DSP processing. Designed specifically for professional stage speakers, line arrays, and subwoofers, these modules significantly simplify system setup and offer excellent cost-effectiveness. They are widely used to drive dual 8-inch, 10-inch, and 12-inch line array speakers, as well as 18-inch subwoofers.
Why set limiter parameters?
I. Protecting Speaker Drivers
Preventing mechanical damage to woofers and burnout of tweeters due to overload.
Woofers (especially subwoofers) have physical limits regarding diaphragm excursion. Excessive signals can cause voice coil rubbing, diaphragm tearing, and spider deformation; the limiter ensures the diaphragm moves within safe mechanical excursion limits by capping peak output voltage.
Tweeters (compression drivers) have significantly lower power handling capabilities than woofers. Sudden high-dynamic signals or feedback squeals can burn out a tweeter within milliseconds. Limiters protect expensive high-frequency compression drivers by capping the maximum output power of the high-frequency channel.
II. Protecting Amplifier Modules
Exceeding rated power leads to severe clipping distortion:
Amplifier transistor overheating: Class D amplifiers experience reduced efficiency and a sharp rise in heat generation during clipping.
Power supply overload: PFC power supplies may trigger protection mechanisms or sustain damage under sustained high-current conditions.
III. Ensuring Consistent Sound Quality
Preventing uncontrolled dynamic compression. Without limiting, high-dynamic signals can drive the system into a non-linear operating range, resulting in a harsh, "shattered," or distorted sound, as well as inconsistent tonal characteristics across different volume levels.
Proper limiting allows the system to maintain clean sound quality while operating at its maximum safe output.

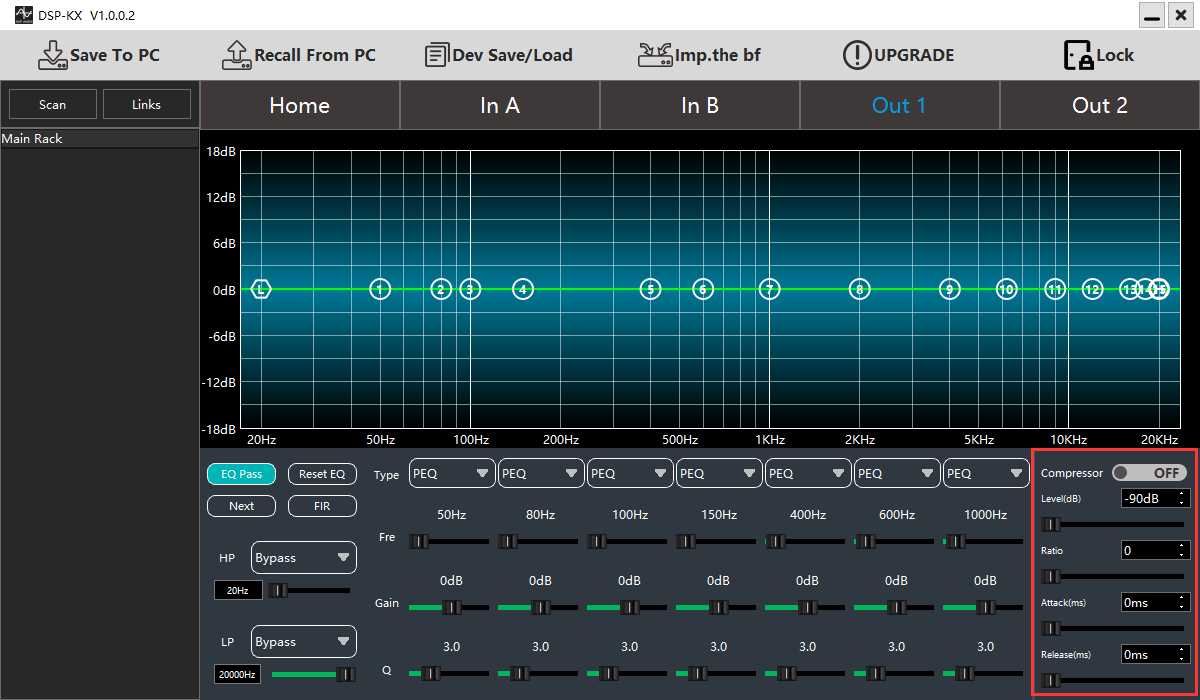

Configuring limiter parameters on the Sinbosen DM active module transforms professional DSP technology into robust protection for valuable equipment assets. By precisely setting thresholds, attack times, and release times, the system can maximize its performance potential while operating safely.
