Sinbosen 4 INPUT 8 OUTPUT DIGITAL AUDIO PROCESSOR DISPLAY FUNCTIONS

4 input 8 output DIGITAL AUDIO PROCESSOR Software Running Environment

Operating system request: windows XP、Windows 7 32Bit 、windows 7 64Bit

Storage space occupation: 50Mb

Network environment: 100m LAN or wireless router

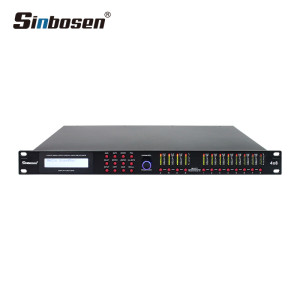

①LCD Screen

ARM version

Control IP address

Location description

Custom properties

Electric running time

②Audio Function

Gain, Gate, Xover, PEQ, Delay, Matrix, Limiter, All Mute, Setup, Copy, Save, Recall

③DataWheel

Data alignment

④Input Level Indicator Light

Above is input signal indicator light. When the input signal exceeds  - 40dBu, the signal indicator light is illuminated, indicating that the audio signal is input from the corresponding channel. Below is auxiliary button and mute switch.

⑤Output Level Indicator Light

Above is output signal indicator light. When the output signal exceeds -40dBu, the signal indicator light is illuminated, indicating that the audio signal is output from the corresponding channel. Below is auxiliary button and mute switch.

①Power Switch

②AC In

Support 100V~240V AC voltage, please use the standard power cable, use power outlet with grounding.

③RS-232 Interface

Use to connect the third - party central control system.

④Ethernet Interface

Connect to switch using standard 5 Ethernet networks, also can connect directly to laptop.

⑤Audio Input Interface: Channel 1～4

Standard XLRF input, balance audio input interface.

⑥Audio Output Interface: Channel 1～8

Standard XLRM output, balanced audio output interface.
