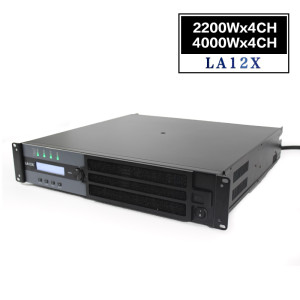

Dsp Control 4 input 4 output professional Power Amplifier LA12X 4000 watt for subwoofer

Dsp Control 4 input 4 output professional Power Amplifier LA12X 4000 watt for subwoofer

Dsp Control 4 input 4 output professional Power Amplifier LA12X 4000 watt for subwoofer
Dsp Control 4 input 4 output professional Power Amplifier LA12X 4000 watt for subwooferDsp Control 4 input 4 output professional Power Amplifier LA12X 4000 watt for subwooferDsp Control 4 input 4 output professional Power Amplifier LA12X 4000 watt for subwooferDsp Control 4 input 4 output professional Power Amplifier LA12X 4000 watt for subwooferDsp Control 4 input 4 output professional Power Amplifier LA12X 4000 watt for subwoofer
CategoriesDSP Amp For Subwoofer
BrandSinbosen| Audio sound system manufacturer
ModelLA12X
COLORBLACK
ClassClass TD Power Amplifier
Warranty3 Years
Special serviceOEM service offered
CertificationCE ROHS
Voltage110V/220V
Channels4 channel
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal
Update Time2022/8/9
Detail Information
Product Description
Model
LA12x
8 ohm Stereo Power(RMS)
2200W *4CH
4 ohm Stereo Power (RMS)
4000W *4CH
Frequency Response
20Hz - 20KHz ±0.5db
THD+N(Rated power,4Ω/KHz)%
0.10%
Signal Noise Ration(dB)
110dB
Input Impedance
20KΩ Balanced / 10kΩ Unbalanced
Output Connectors
Speak on Connectors
Power Requirement
110-120V / 50-60Hz or 200-240V / 50-60Hz

DSP CONTROL:

Connect the computer for DSP software operation, which is equivalent to the work of a processor.
DSP Function:In Level,Gate,Feedback,In Filter,In Limiter,In Delay,Matrix,Signal,Out Level,Out Filter,Out Limiter,Preset,Settings,Security etc.

This DSP has below feature:
● It suit for Win 7 Win10 and MAC system;
● ADSP-21488 400Mhz floating-point DSP
● Dynamic range 110dBu
● Input 16 PEQs and Output 16 PEQs
● Time-Delay CH1-4 : 218ms, CH5-8 : 168ms
● Two 100M Ethernet interfaces
● PC Software Automatic Discovery Processor
● 32 system presets
● Fast copy of channel parameters
● Upgrade DSP and ARM firmware through Ethernet
● Any Module Function Parameter are Hidden and Read - Only
● Customized your Brand on DSP Software easily.
