DS-14K 4 channel professional subwoofer power amplifier 2 channel 2000 watts
DS-14K 4 channel professional subwoofer power amplifier 2 channel 2000 watts
| Categories | Amplifier For Subwoofer |
|---|---|
| Brand | Sinbosen| Audio sound system manufacturer |
| Model | DS-14K |
| Channels | 2 channel power amplifier |
| Type | Professional Power Amplifier |
| 8Ω Output Power | 2400WX2CH |
| 4Ω Output Power | 4400WX2CH |
| Color | Black, Blue |
| Certification | CE, ROHS, TUV |
| Class | TD |
| Warranty | 3 Years |
| Capacitors | 3300uf/200V |
| Special service | OEM service offered |
| For | Dual 18 inch subwoofer |
| Application | Karaoke/KTV/Cinema/Church/Stage/Concert/DJ |
| FOB port | Guangzhou |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal |
| Update Time | Apr 27,2024 |
Detail Information

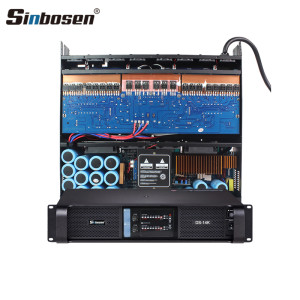

New upgraded DS-14K amplifier details
1. Use original "Siemens" capacitors.
- 12 3300uf/200V(2 more than the old version)
- 4pcs 2200uf/200V
2. High quality blue magnifying plate.
3. Use the original "Sanken" and "Fairchild" transistors.
4. Built-in 8 small fans, upgrade cooling system, energy saving and high efficiency
5. Use Swiss XLR brand - Neutrik.
Sinbosen high power 4400w 2 channel lab DS-14K amplifier for dual 18-inch bass
One DS-14K switch high power amplifier can use with 2 pcs Dual 18 inch speaker
DS-14K SPECIFICATIONS：
8 ohms Stereo Power: 2x2400W
4 ohms Stereo Power: 2x4400W
8 ohms Bridged Power: 8800W
4 ohms Bridged Power: 14000W
Frequency Response(+0/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W: <0.1%
Signal-to-Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz: >70 dB
Input Connectors (per channel): 3-pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush,sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB
