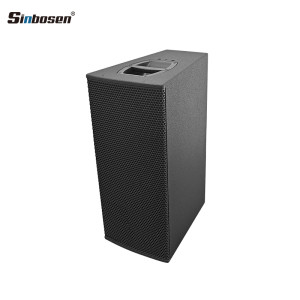

Dual 10" high performance 3-way passive point source loudspeaker

Categories	Point Source Speaker
Trademark/Brand	Sinbosen\| Audio sound system manufacturer
Model	V-7
Maximum SPL	140 dB
Nominal impedance	8 Ω
Frequency response	59 Hz - 18 kHz
Power handling capacity	500/2000 W
Update Time	Nov 21,2025

Contact Now

Favorites

Detail Information

Product Parameters

Max. sound pressure		140 dB
Frequency response (-5 dB standard)		59 Hz - 18 kHz
Frequency response (-5 dB CUT mode)		100 Hz - 18 kHz
Cabinets per amplifier channel		2
Configuration		High performance 3-way passive point source loudspeaker
Nominal impedance		8 Ω
Power handling capacity		500/2000 W
Nominal dispersion angle		75° x 40°
Components		2 x 10" LF driver with neodymium magnet 1 x 8" MF driver with neodymium magnet 1 x 1.4” exit compression driver Passive crossover network
Connections		2 x NLT4 F/M optional 2 x NL4 M
Dimensions (h x w x d)		700 x 308 x 466 mm 27.5 x 12 x 18.3"
Weight		33 kg 75 lb

This three-way passive point source speaker boasts a compact size yet delivers a peak sound pressure level of 140 dB, while its 75° x 40° rotatable horn ensures constant directivity. Multi-point mounting and a polyurea-coated marine-grade plywood enclosure allow for quick and reliable deployment in any location.

Feature：

●Three-way passive system with 2×10" LF, 8" MF, and 1.4" HF drivers

●High SPL capability: Maximum sound pressure level of 140 dB

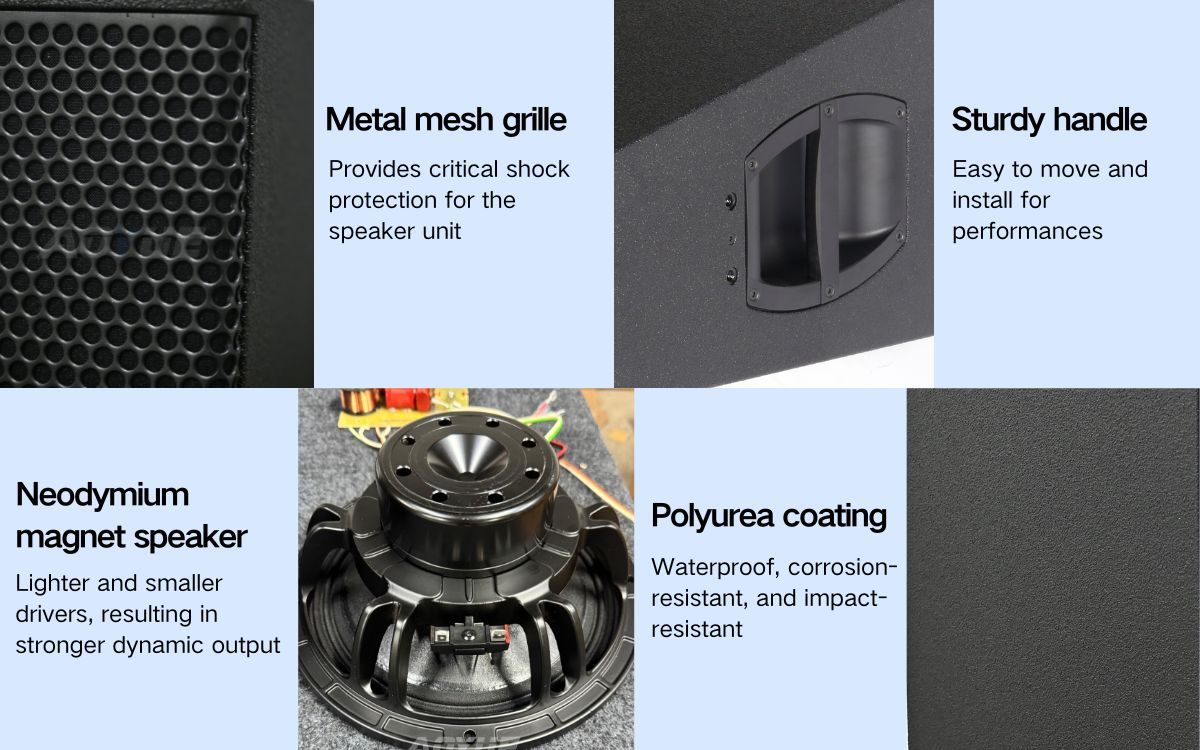

●Plywood enclosure with polyurea coating and steel mesh grille, designed for touring and outdoor fixed installations

●Versatile rigging options including flying, stacking, and pole-mounting for flexible venue adaptation
