Home / All / AMPLIFIER MODULE / DSP Dual Channel 900W 8ohm Digital Amplifier Module with Display

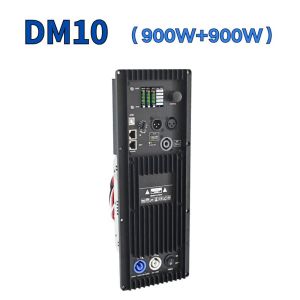

DSP Dual Channel 900W 8ohm Digital Amplifier Module with Display

Share
Categories	AMPLIFIER MODULE
Brand	Sinbosen\| Audio sound system manufacturer
Model	DM10
Channel	2 channel
Type	active amplifier module
Voltage	90V~240V

Contact Now

Add to Wishlist

Detail Information

Noted:

To connect with the Windows Computer, please prepare one USB to RJ45 cable.

See below picture.

This DSP software not support for iOS system.

FEATURES:

► Built-in 48K high-performance DSP processor with FIR function, RS485 networking or USB cable for adjustment.

►Bult-in LED screen display, easy to adjust function, such as Gain, Bridge,Delay and language.

►Speaker output: The module is 2channels, user can connect one channel to extra passive speaker.

► Power Supply: PFC Type 50-60Hz AC90~265V.

► Professional-grade audio CLASS D amplifier circuit.

► Fully sealed with its own shielding box, speakers can be installed without the need for a partition.

► Widely used in line array speakers, full-range and subwoofer combination sets. Such as Dual 8inch, 10inch, 12inch line array or full-range speaker, or 15inch, 18inch subwoofer.

►Built-in DSP Module, controlled by Computer for Equalizer, Delay, Volume and so on.

► With Temperature protection, short circuit protection, DC protection.
