Customer Feedback — Ultra-quiet SR Series Digital Power Amplifiers
In a home theater system, the role of an amplifier extends far beyond merely "amplifying signals." It dictates the system's dynamic ceiling, noise floor, and the ultimate character of the sound. Large-diameter subwoofer drivers require substantial power, yet the fan noise typical of professional amplifiers often creates an intrusive background distraction during quiet cinematic moments—suggesting an inherent conflict between "powerful low-frequency output" and "silent operation."
Recently, a seasoned home theater enthusiast shared details of a top-tier system he built using the Sinbosen SR2-4500 ultra-quiet amplifier and the flagship Stereo Integrity HS-24 24-inch subwoofer driver. His setup demonstrates how the SR series strikes a perfect balance between "surging power" and "whisper-quiet performance."

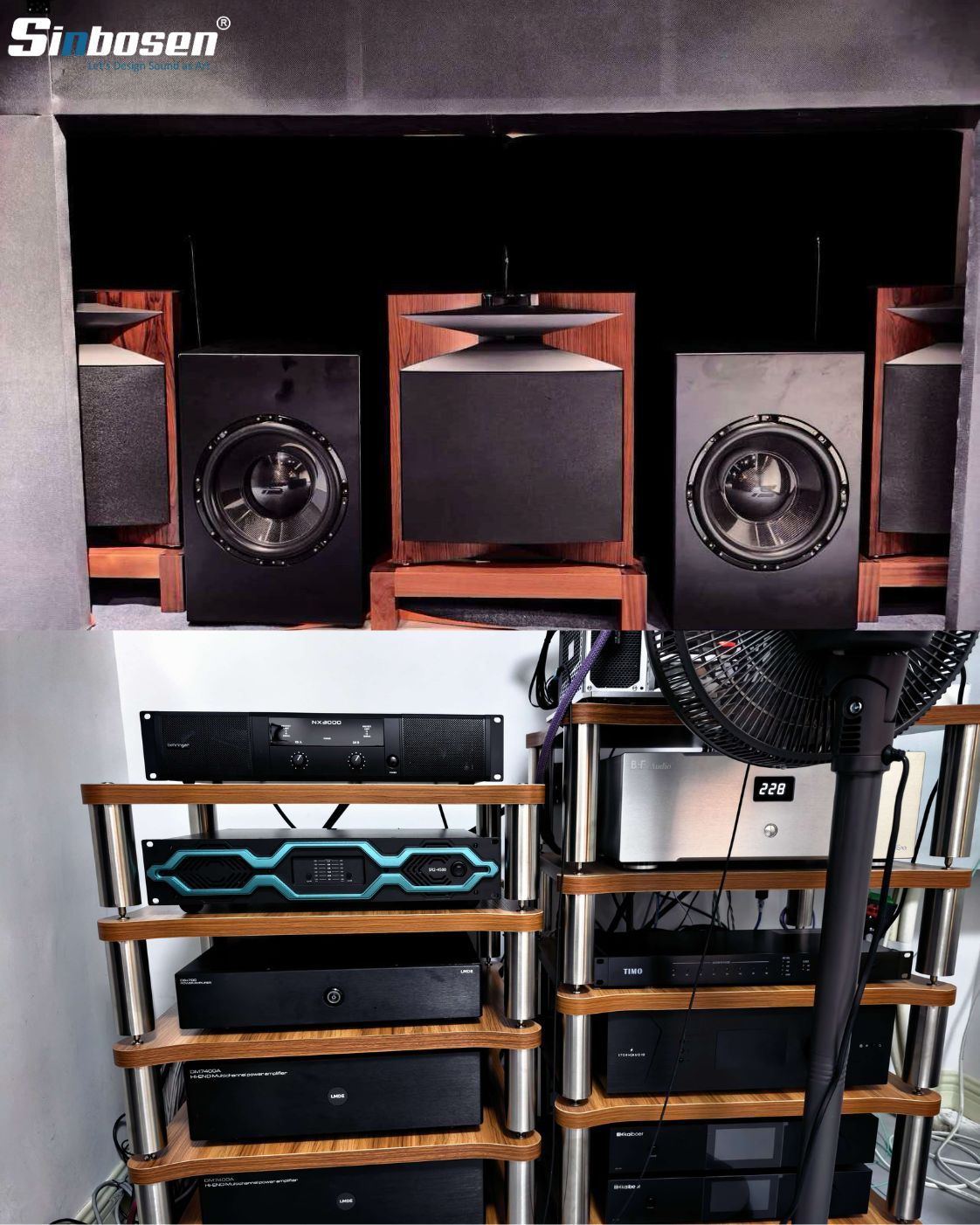

The client’s private home theater features professional acoustic treatment and utilizes a dedicated equipment rack to centrally manage the source components, pre-amplifier, power amplifier, and peripheral gear. Positioned at the heart of the rack, the SR2-4500 works in concert with other audio components to drive multiple large subwoofers and a custom horn system, delivering a high-power, high-fidelity, full-range cinematic audio experience.
| Equipment Type | Mode | Key Specifications | |||
| Power Amplifier (Subwoofer Channel) | Sinbosen SR2-4500 | 2×4500W @ 8Ω / 2×8000W @ 4Ω / 2×7000W @ 2Ω | |||
| Subwoofer Driver | HS-24 24-inch Driver | Carbon fiber composite cone; low impedance; high current requirement | |||
| Center/Surround | Custom Large-format Horn System | Seamless integration with the subwoofer system |

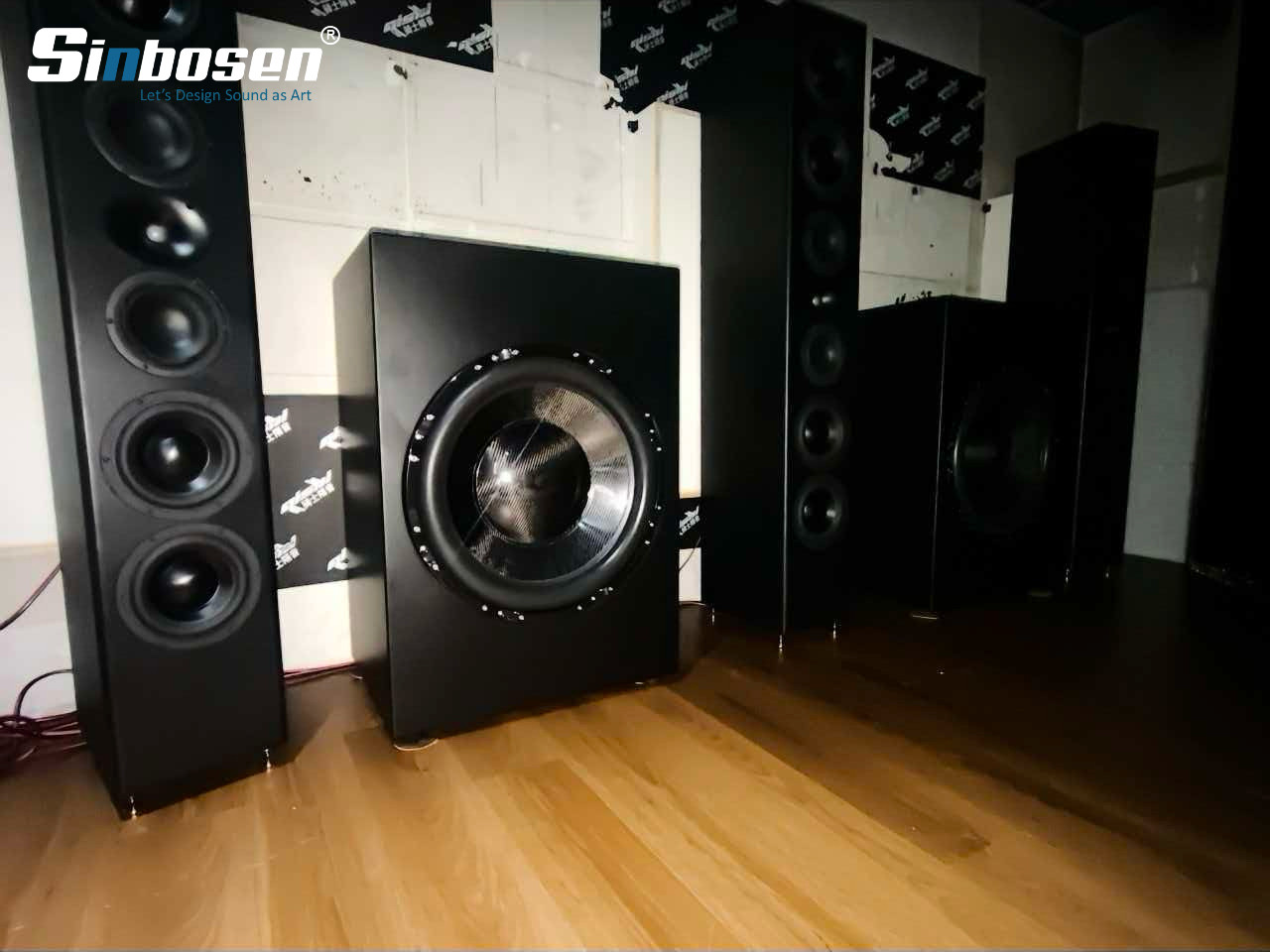

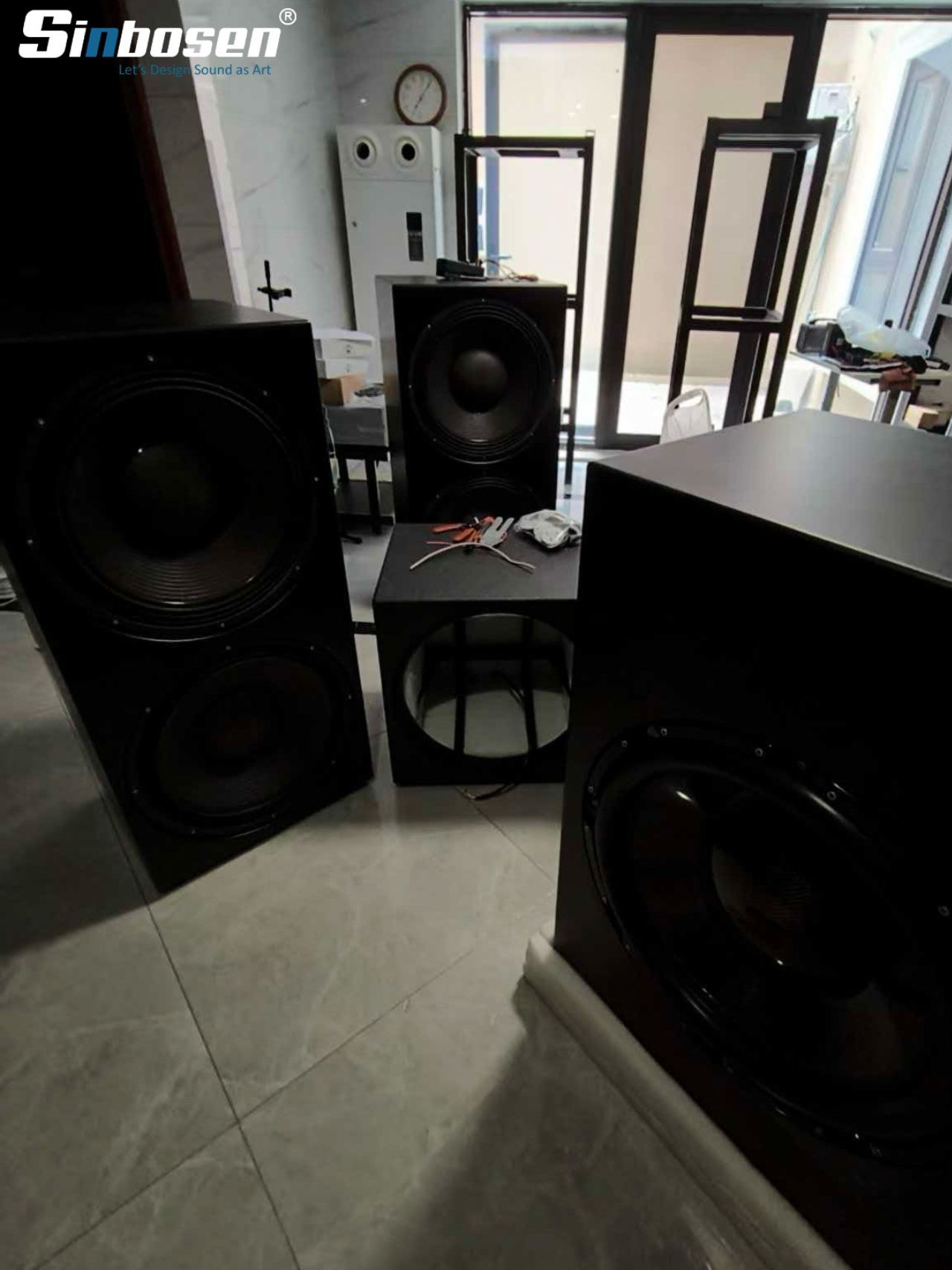

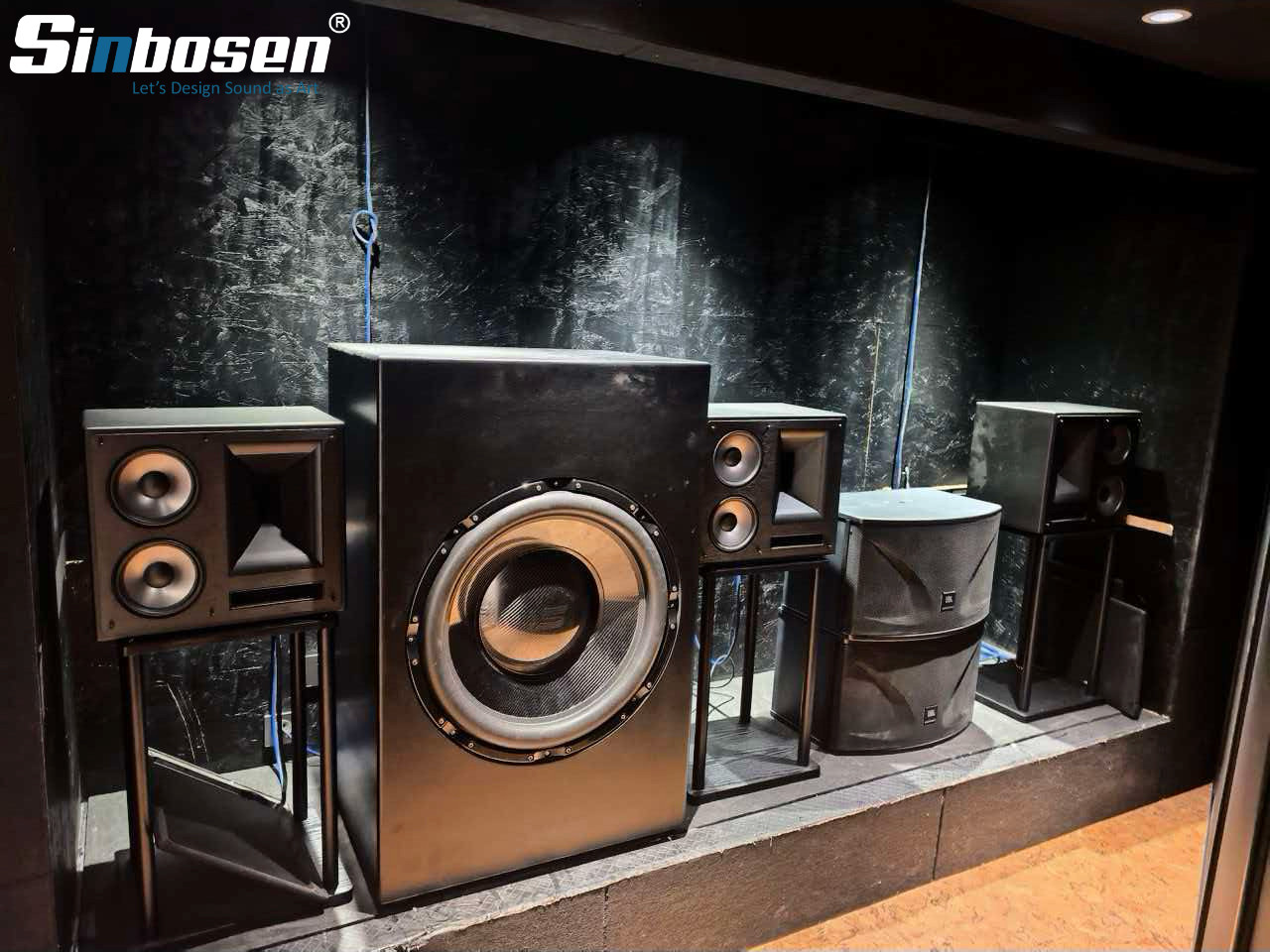

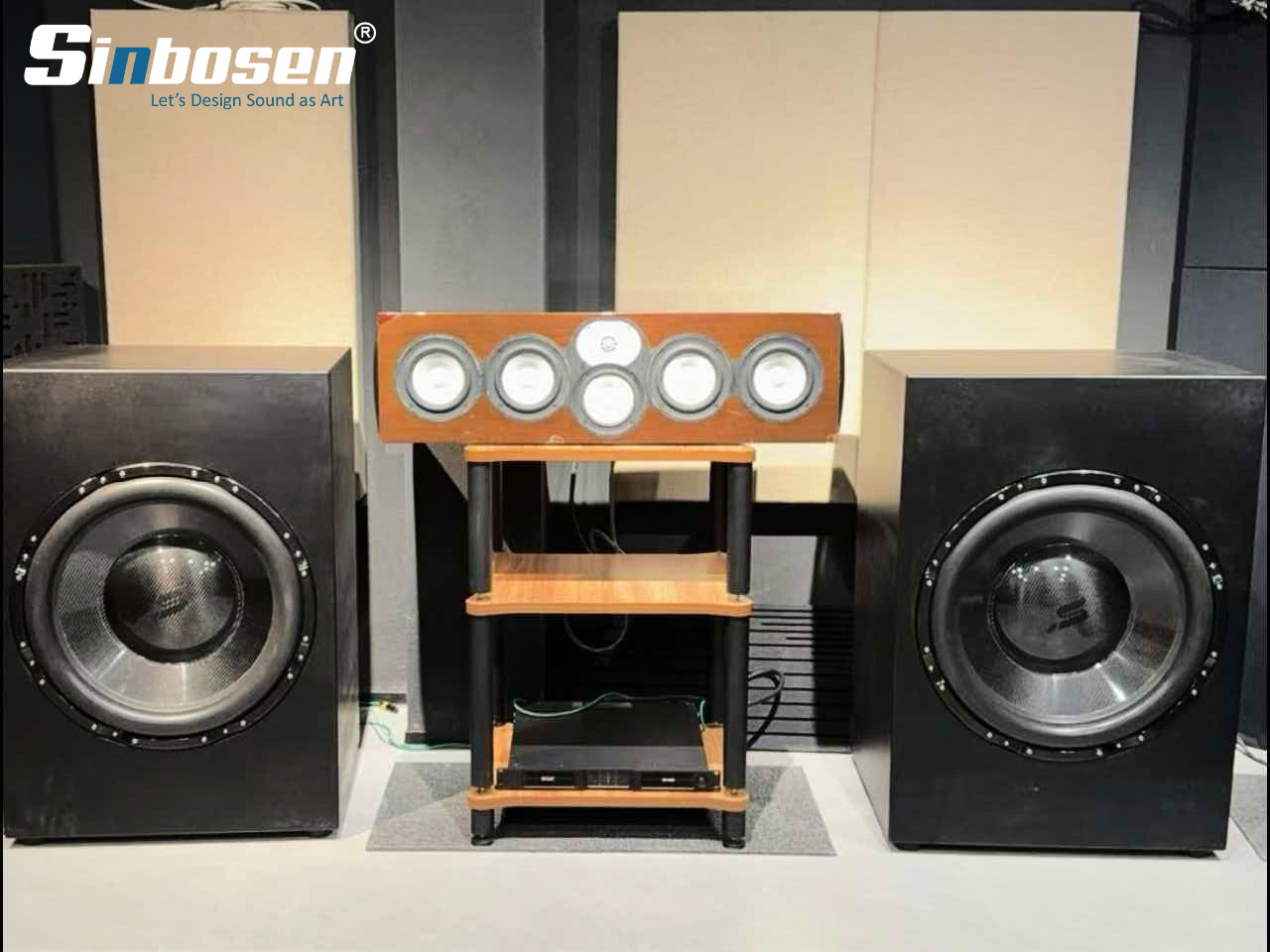

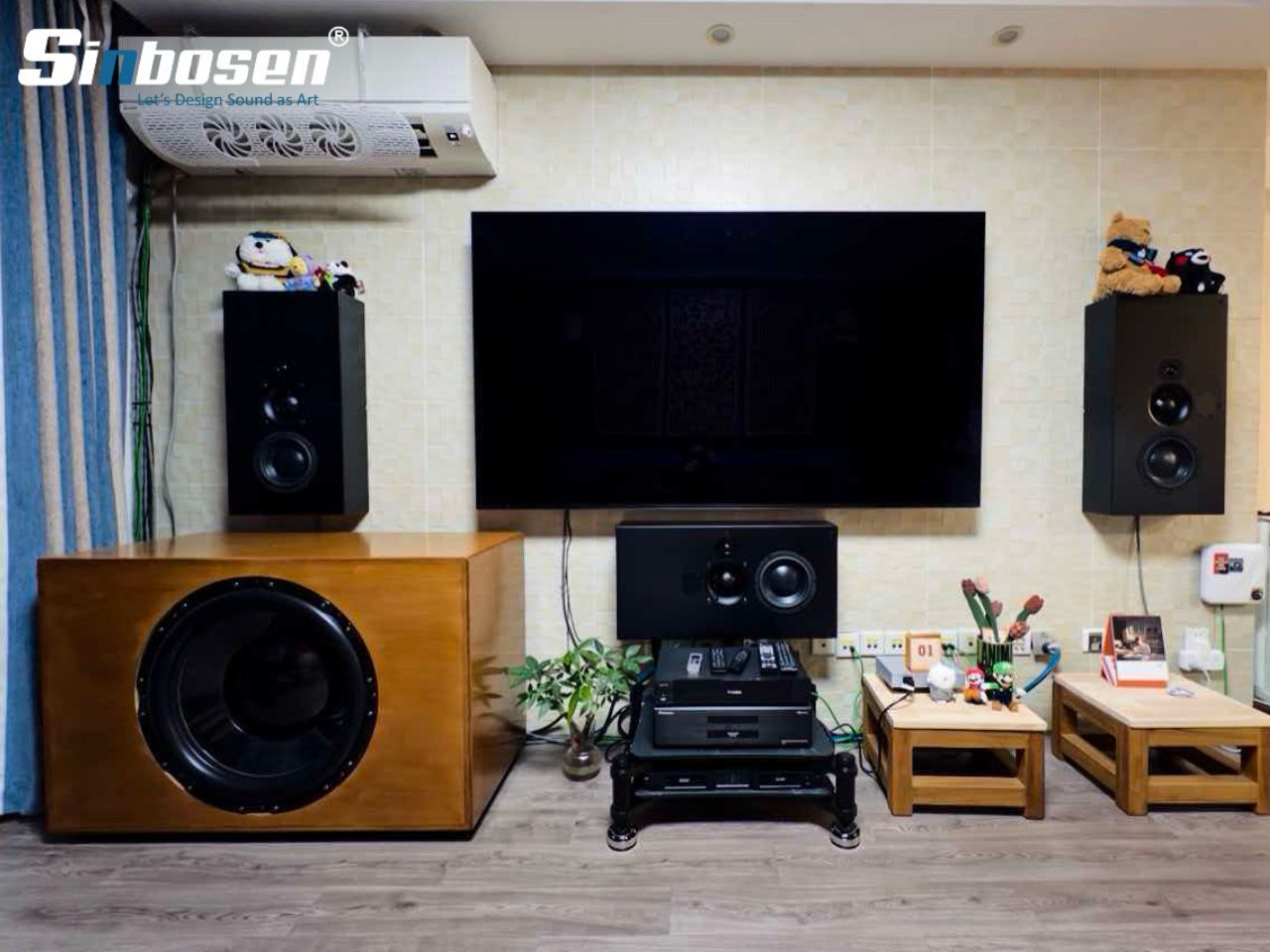

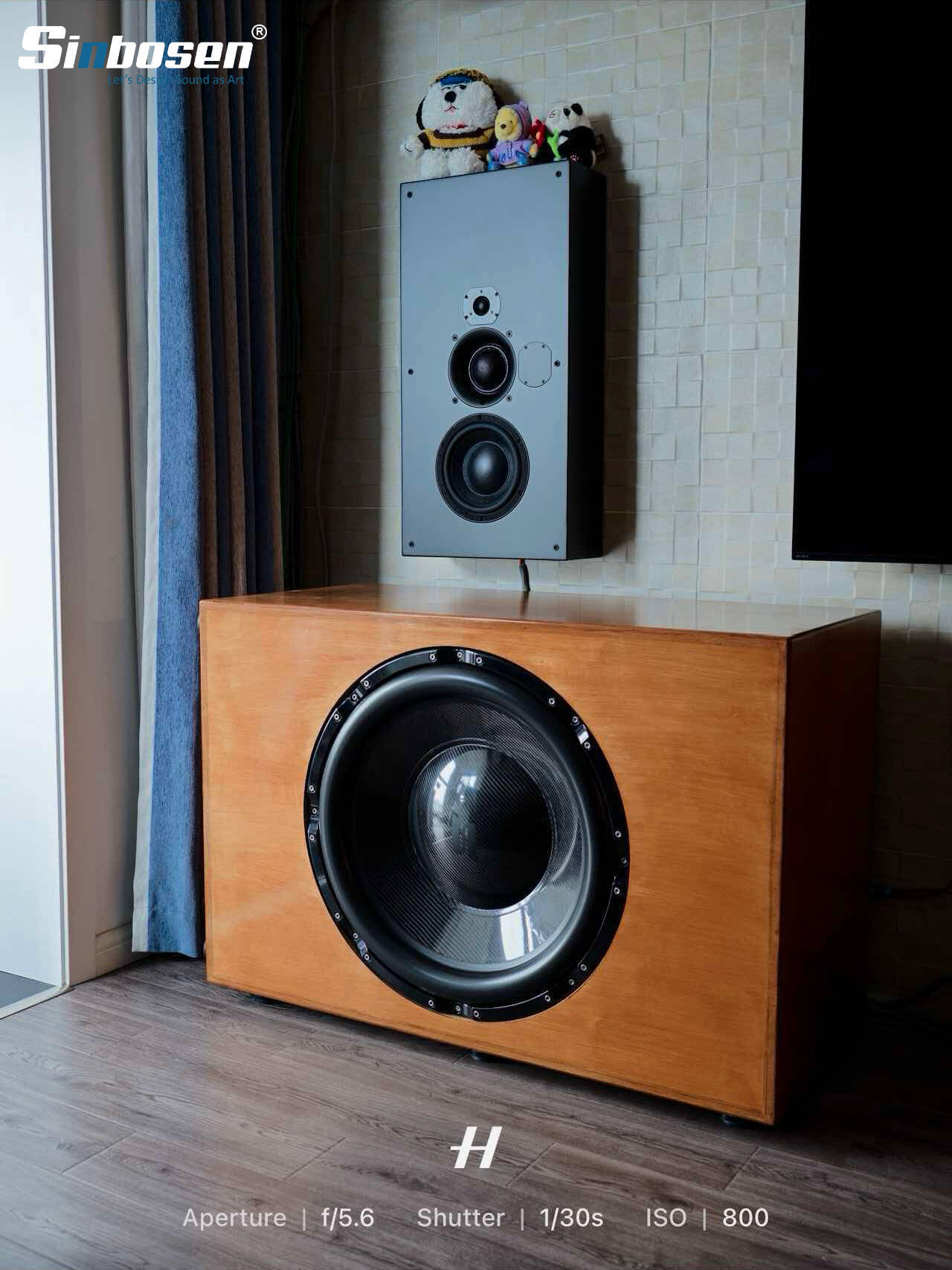

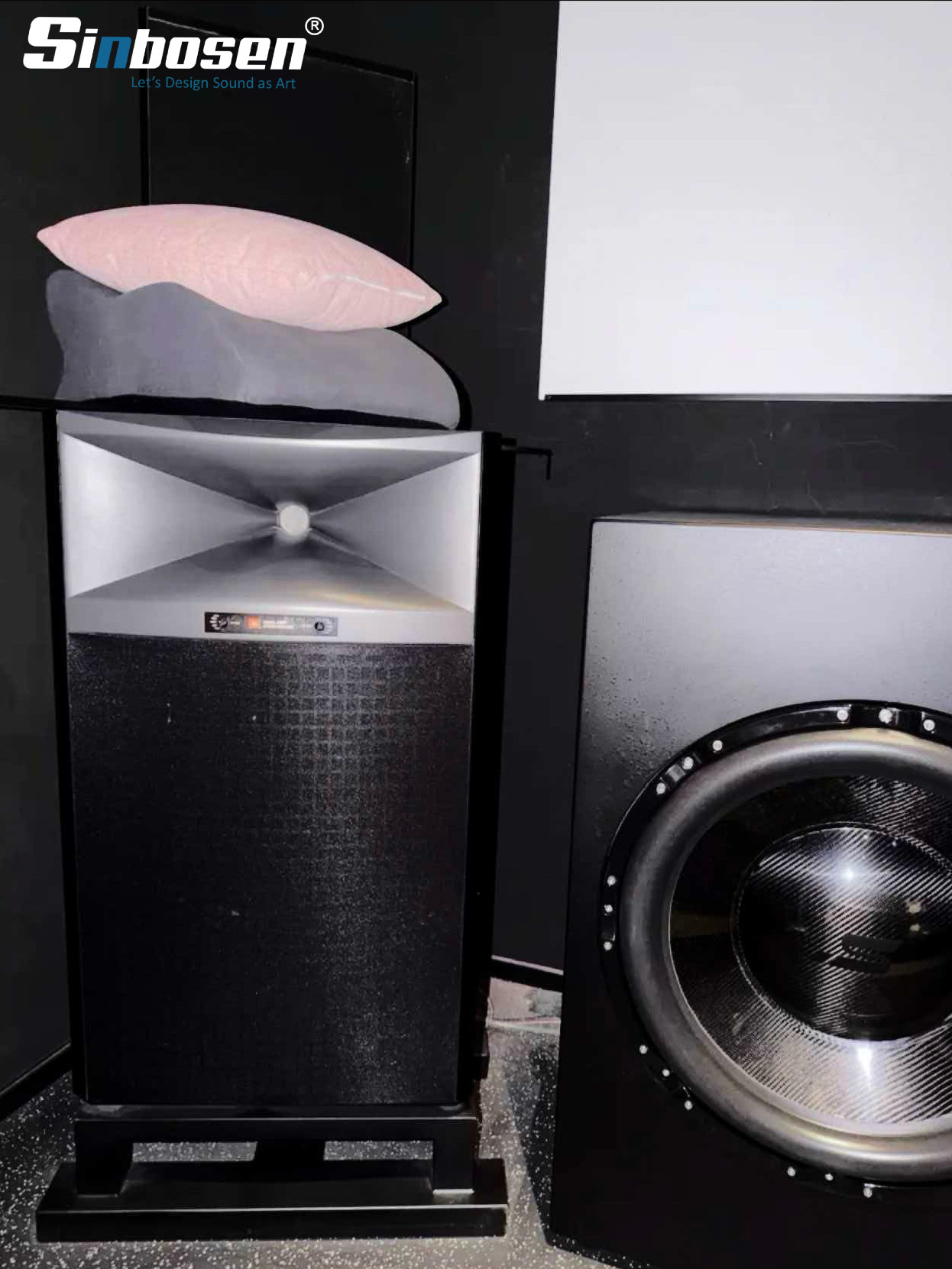

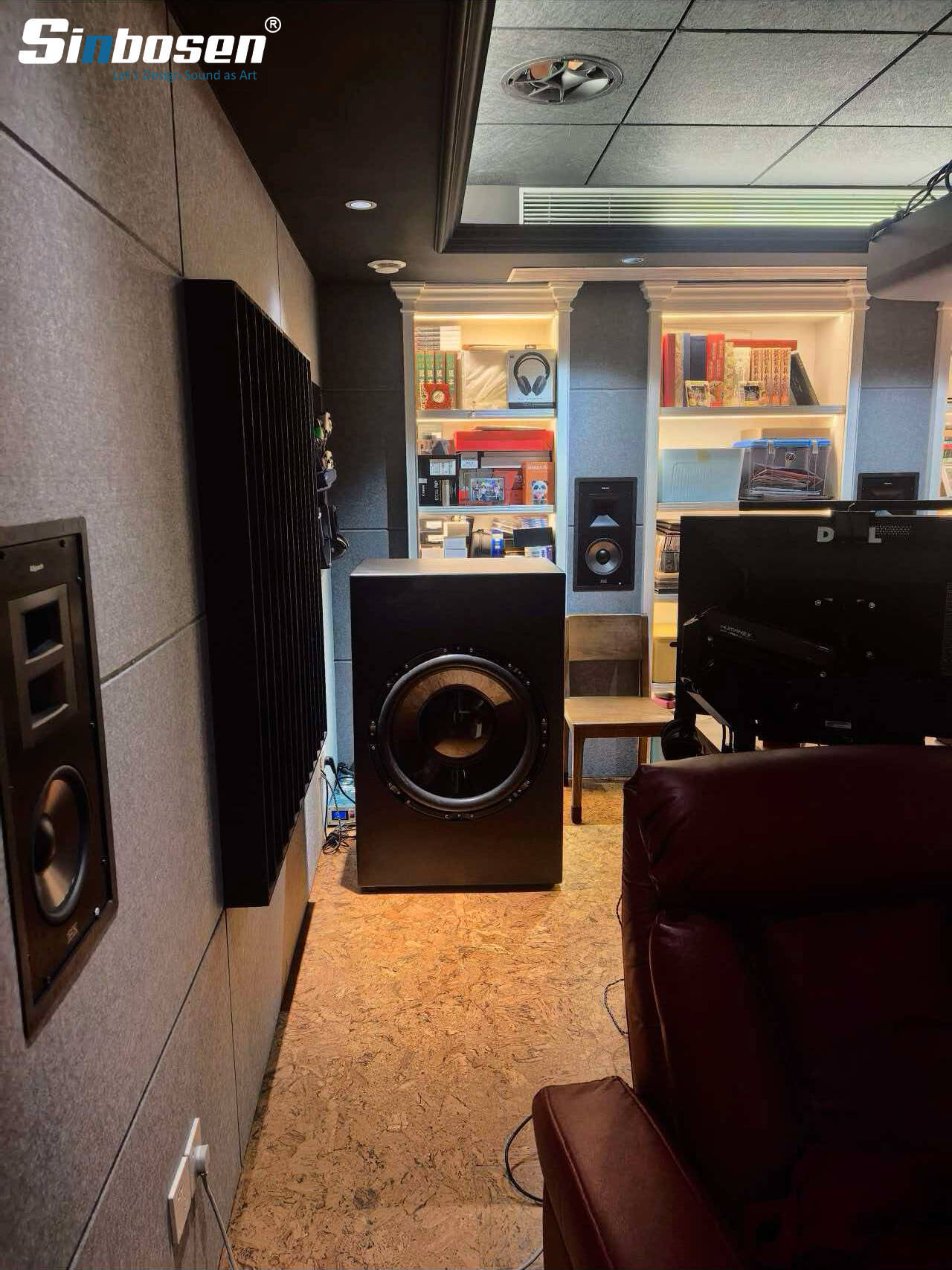

Customer Home Theater
Why do customers choose the SR series?
一、Ultra-Quiet Cooling
The SR series features a brand-new, ultra-quiet cooling system—a core technology specifically optimized by Sinbosen for home theater environments. While traditional professional amplifiers often rely on high-speed fans for forced cooling to handle sustained high-power output—a practice acceptable for stages and bars—this becomes a critical drawback in the quiet setting of a home theater.
By redesigning the airflow channels and optimizing the heatsink structure, and incorporating four silent fans, the SR series achieves a signal-to-noise ratio exceeding 110dB and total harmonic distortion (THD) below 0.5%. This means that even at full power output, the amplifier's noise floor remains far below the ambient noise level of a typical home theater environment.
二、Power Reserve
The SR series offers stable performance across a frequency range extending down to 10Hz (at 8Ω) and 15Hz (at 4Ω). Whether driving large subwoofer cones through wide excursions at ultra-low frequencies or handling sudden transient peaks—such as explosions or impacts in movie soundtracks—the SR2-4500 provides ample dynamic headroom, effectively preventing clipping distortion and power compression.
三、Stable 2Ω Drive Capability
The entire SR series boasts reliable 2Ω drive capability, maintaining stable operation even with impedances as low as 1.5Ω. This feature is crucial for driving high-end subwoofers that demand high current and operate at low impedances.
四、Four-Level Adjustable Gain
The SR2-4500 offers four selectable gain settings: 32dB, 35dB, 38dB, and 41dB. This is a highly practical design feature that is rarely found in similar products. Output levels vary significantly across different brands of preamplifiers, DSPs, and source devices. A mismatch between amplifier gain and the preamplifier stage can easily lead to two scenarios:
五、Professional Connector Configuration
SR4-3200 and SR4-1800 utilize genuine Neutrik NL4 and NL8 output connectors, ensuring reliable and safe high-power signal transmission while preventing arcing or signal interruption caused by poor contact.
Detachable 32A PowerCON power cable: A professional-grade power connection that supports sustained high-power output while facilitating equipment maintenance and transport.
六、Comprehensive Protection Mechanisms
The SR series features built-in multi-layer protection circuitry, including:
Short-circuit protection: Prevents amplifier damage caused by accidental short circuits at the output terminals.
Wide-voltage adaptability (100V–240V): Compatible with power grid environments across different global regions.
Over-temperature protection: Automatically reduces output or shuts down the unit under extreme operating conditions to ensure equipment safety.
DC protection: Prevents loudspeaker damage caused by DC offset.

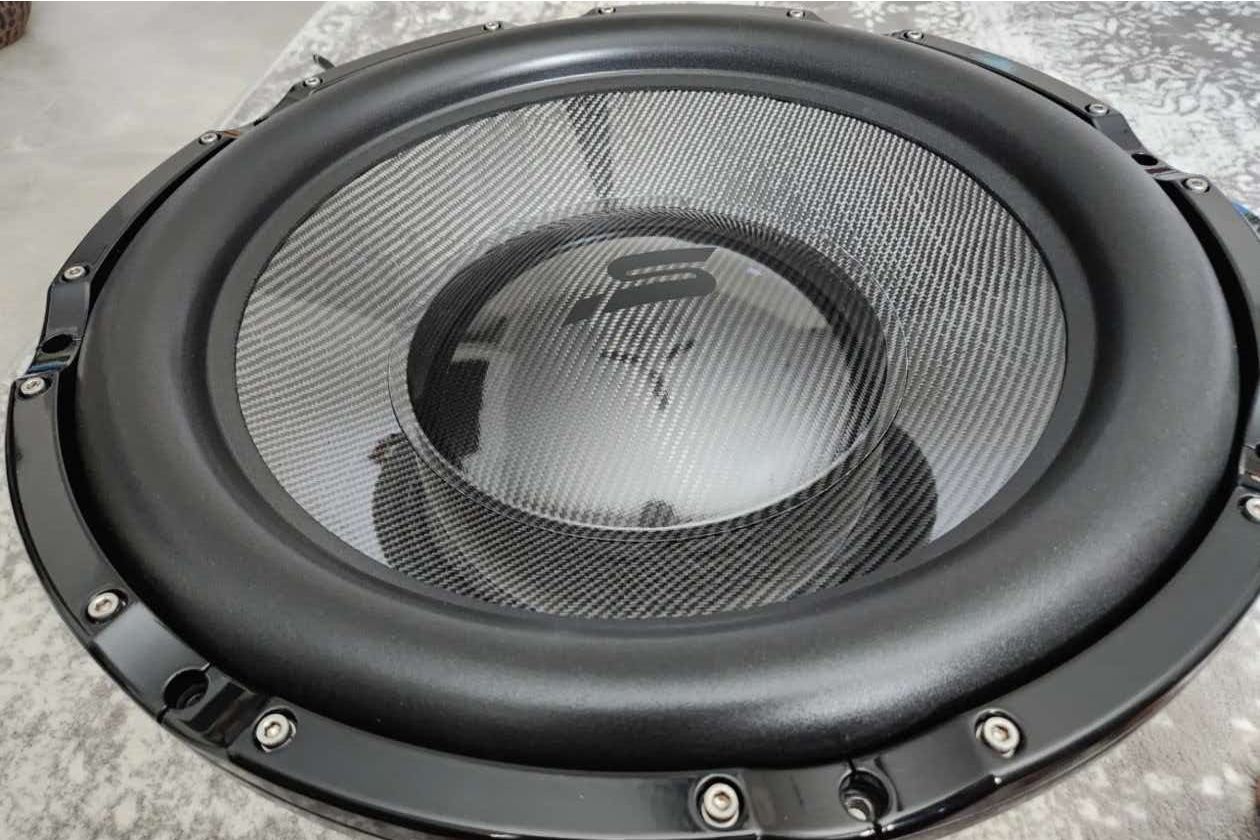

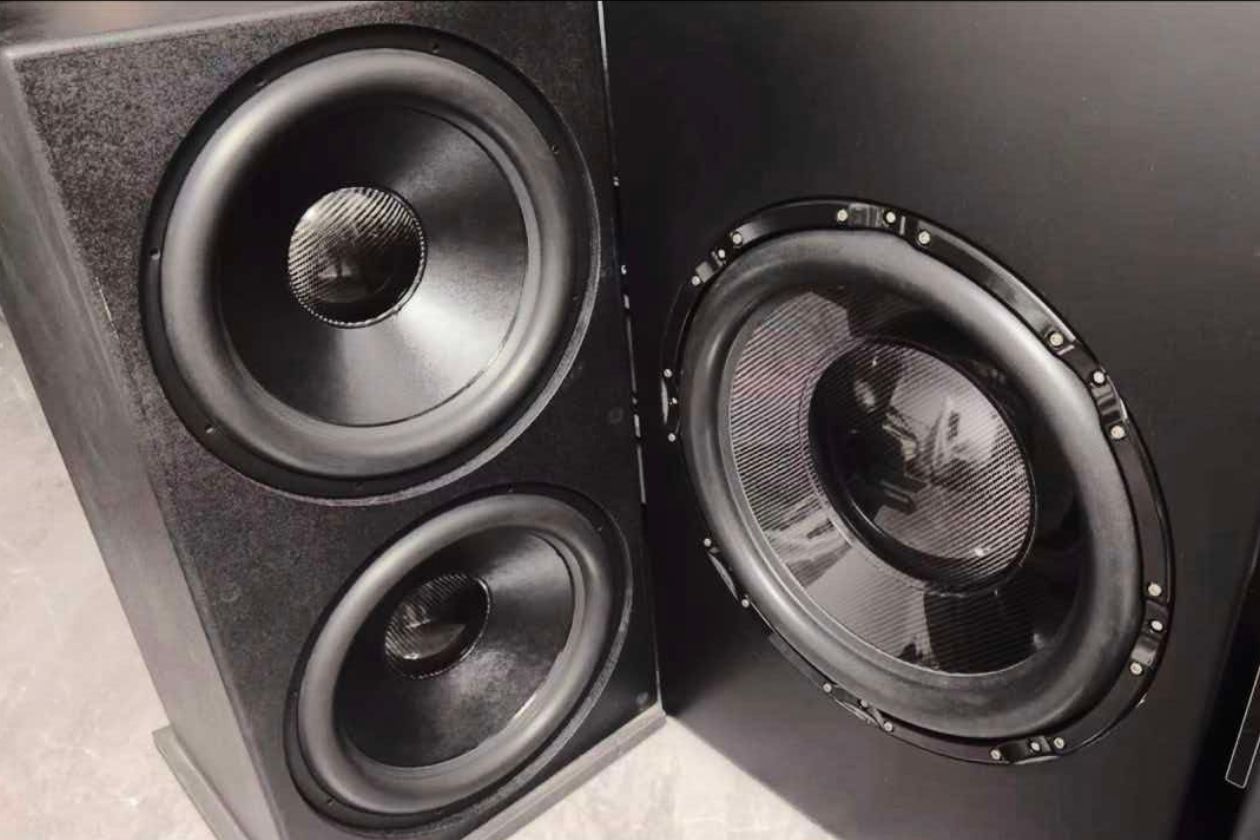

Customer Application – HS-24 24-inch Speaker Driver and SR2-4500
The HS-24 boasts immense linear displacement potential, effortlessly reproducing the full audio spectrum and extending deep into the single-digit Hertz infrasonic range. Given its remarkable linear excursion capabilities, the driver incorporates three shorting rings that deliver class-leading inductance suppression.
Key technical features of the HS-24 include:
– Custom-engineered high-BL (force factor) motor system
– 10-inch diameter, 3-layer Nomex spider ensuring linear suspension travel
– Bifilar copper voice coil designed to minimize inductance while enhancing bass tightness and control
– Three internal shorting rings to manage inductance and ensure linear performance

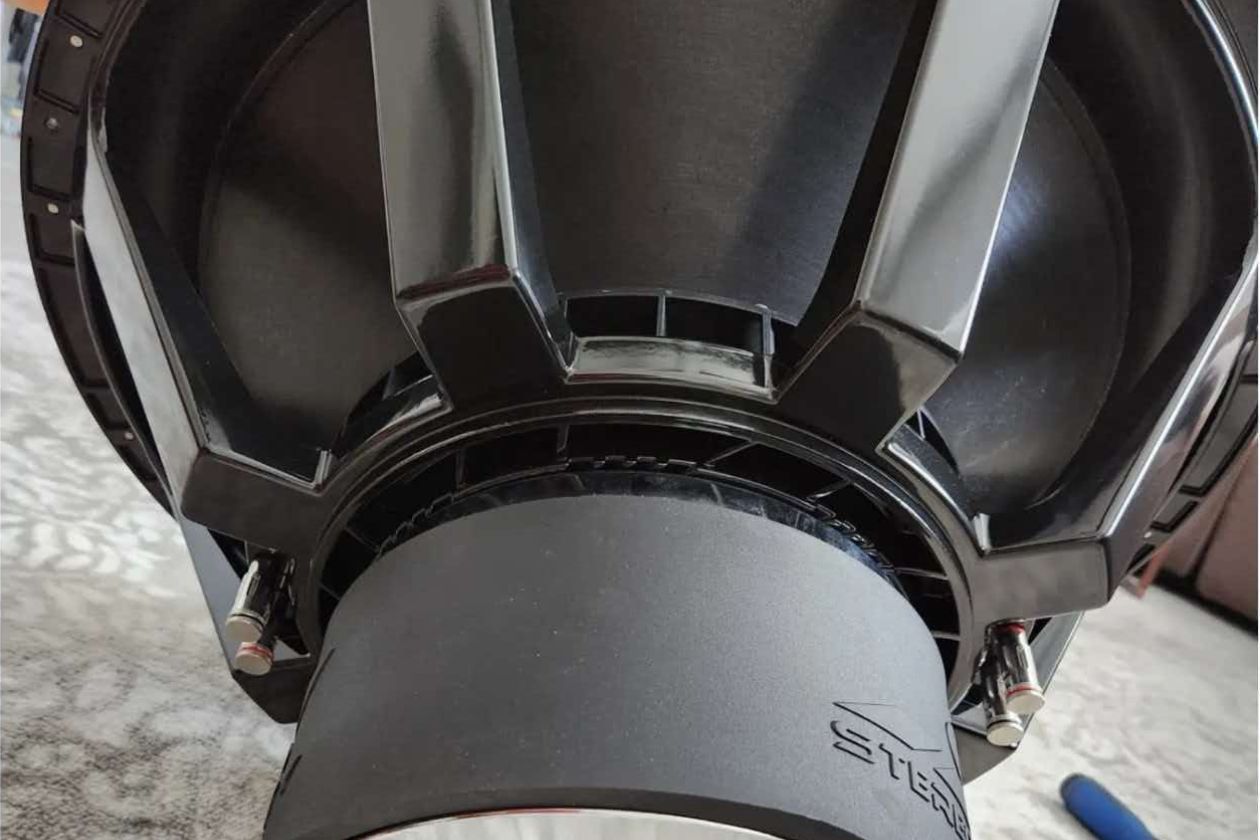

– 10-inch diameter motor assembly featuring a stack of four Y35 ferrite magnets, providing powerful drive force and reducing enclosure volume requirements
– 36 mm one-way Xmax (72 mm total linear excursion) with a peak-to-peak excursion exceeding 120 mm
– Cast aluminum basket
– Composite sandwich cone structure utilizing carbon fiber and Kevlar
– Large 4 AWG spring-loaded binding posts
| Matching Dimension | HS-24 Requirement | SR2-4500 Capability | Match Quality |
| Power Headroom | 3000W RMS / 6000W Program | 8000W @ 4Ω / 7000W @ 2Ω | Headroom exceeds 2x requirement; fully meets peak demands |
| Current Drive | Dual 2Ω voice coils; low-impedance, high-current load | Stable at 2Ω; capable of driving down to 1.5Ω | Perfectly matches low-impedance, high-current requirements |
| Distortion Control | High-fidelity reproduction | THD < 0.5% | Ensures micro-dynamics of the cone are not masked |
Thermal & Noise | Quiet home theater environment | Ultra-quiet cooling system | Resolves the major pain point of traditional pro-audio amplifiers |
Low-Frequency Extension | Fs 16.2Hz; requires high voltage swing | High-voltage design; massive dynamic headroom | Effortlessly drives the driver down to single-digit frequencies |
SR series product parameters and other specific models
| Module | SR4-3200（DSP） | SR2-4500（DSP） | SR4-1800（DSP） |
| Output Power: | 4 × 3200W / 8Ω (RMS) | 2 × 4500W/8Ω (RMS) | 4 × 1800W/8Ω (RMS) |
| 4 × 5500W / 4Ω (RMS) | 2 × 8000W/4Ω (RMS) | 4 × 3000W/4Ω (RMS) | |
| 4 × 6000W / 2Ω (RMS) | 2 × 7000W/2Ω (RMS) | 4 × 3800W/2Ω (RMS) | |
4 × 7000W / 2Ω (20ms burst) | 2 × 8500W/2Ω (20ms burst) | 4 × 5600W/2Ω (20ms burst) | |
chassis | 2U Chassis | ||
Frequency Response | 20Hz–20kHz, +0/-1dB | ||
Total Harmonic Distortion (THD): | <0.5%, 20Hz–20kHz | ||
Intermodulation Distortion (IMD): | <0.05% | ||
Slew Rate | 50 V/µs @ 8Ω | ||
Damping Factor: | >1000 @ 20–200 Hz | ||
Signal-to-Noise Ratio (SNR): | >110dB | ||
Gain Selection: | 32dB / 35dB / 38dB / 41dB | ||
Beyond home theater applications, the SR series—thanks to its core strengths of ultra-quiet cooling, massive power reserves, and stable 2Ω drive capability—is equally well-suited for professional recording studios and monitoring rooms (where an ultra-low noise floor ensures accurate mixing decisions), high-end bars and live music venues (maintaining quiet, reliable operation under continuous heavy loads), line array systems (stable operation down to 1.5Ω, effortlessly driving parallel-connected subwoofer modules), theaters and cinemas (precise reproduction of high-dynamic-range audio with THD < 0.5%), and premium conference rooms or private clubs (combining professional-grade power with business-class quietness), as well as any professional sound reinforcement or fixed installation scenario that demands both noise-free operation and robust driving power.
