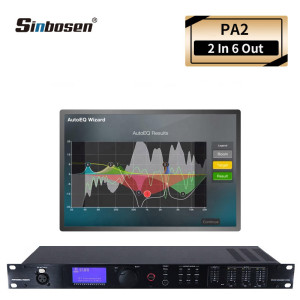

2 In 6 out professional audio digital speaker manage processor

Categories	AUDIO PROCESSOR
Brand	Sinbosen\| Audio sound system manufacturer
Model	PA-2
Type	DSP digital audio processor
Color	Black
Number of Channels	2 input 6 output
Power Supply	Switching Power Supply
Warranty	2 years
Application	Concert, stage, KTV, Home Theatre
Power Requirements	25w
Frequency Response	20 Hz-20 kHz(±0.5dB)
Terms of Payment	Western Union, MoneyGram, T/T, Paypal
Download
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

2 In 6 out professional audio digital speaker manage processor

The digital audio processor has two inputs and six outputs. The front ends of both inputs include a 28-segment graphic equalizer with a total of 2.7 seconds of digital delay resources. digital audio processor design engineers understand the needs of users, designed a new generation of peripherals. From now on, only one piece of equipment is needed from the mixer to the amplifier, a controller that includes all the basic peripheral functions.

The PA-2 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications.

Features
All New Setup Wizard
Streamlined AutoEQ™
All New AFS™ (Advanced Feedback Suppression)
Compression
Graphic EQ
8-Band Parametric EQ (adjusted when using the AutoEQ) Input
Subharmonic Synthesis
Crossover (supports full range, 2-way, and 3-way systems)
8-Band Parametric EQs (used for speaker tunings) Output
Limiting
Driver Alignment Delays

Specification

Input : (2) line inputs. (1) RTA Mic input

Input Connectors : (2) Female XLR line inputs. (1) Female XLR RTA Mic input

Input Type : Electronically balanced/RF filtered

Input Impedance : >50 kohm

CMRR : > 45dB

Mic Preamp Phantom Power : +15VDC (RTA)

Mic Preamp Equivalent Input Noise (EIN) : < -117dB, 22Hz-22kHz, 150 ohm (RTA)

Output : (6) Line Outputs

Output Connectors : Male XLR

Output Type : Electronically balanced, RF filtered

Output Impedance : 120 Ω

Max Output : +20dBu

A/D Dynamic Range : 112 dB A-weighted, 110 dB unweighted

Type IV Dynamic Range : 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW

Input Delay Length : 100ms

Alignment Delay : 10ms per channel (60ms total)

Sample Rate : 48kHz

Dynamic Range : >110 dB A-weighted, >107dB unweighted

THD+Noise : 0.003% typical at +4dBu, 1kHz, 0dB input gain

Frequency Response : 20Hz – 20kHz, +/- 0.5dB

Interchannel Crosstalk : < -110 dB, -120dB typical (input-to-output: < -100 dB)

Operating Voltage : 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz

Power Consumption : 22 W

Dimensions : 4.4cm (H) x 14.6cm (D) x 48.26cm (W)

D/A Dynamic Range : 112 dB A-weighted, 110dB unweighted
