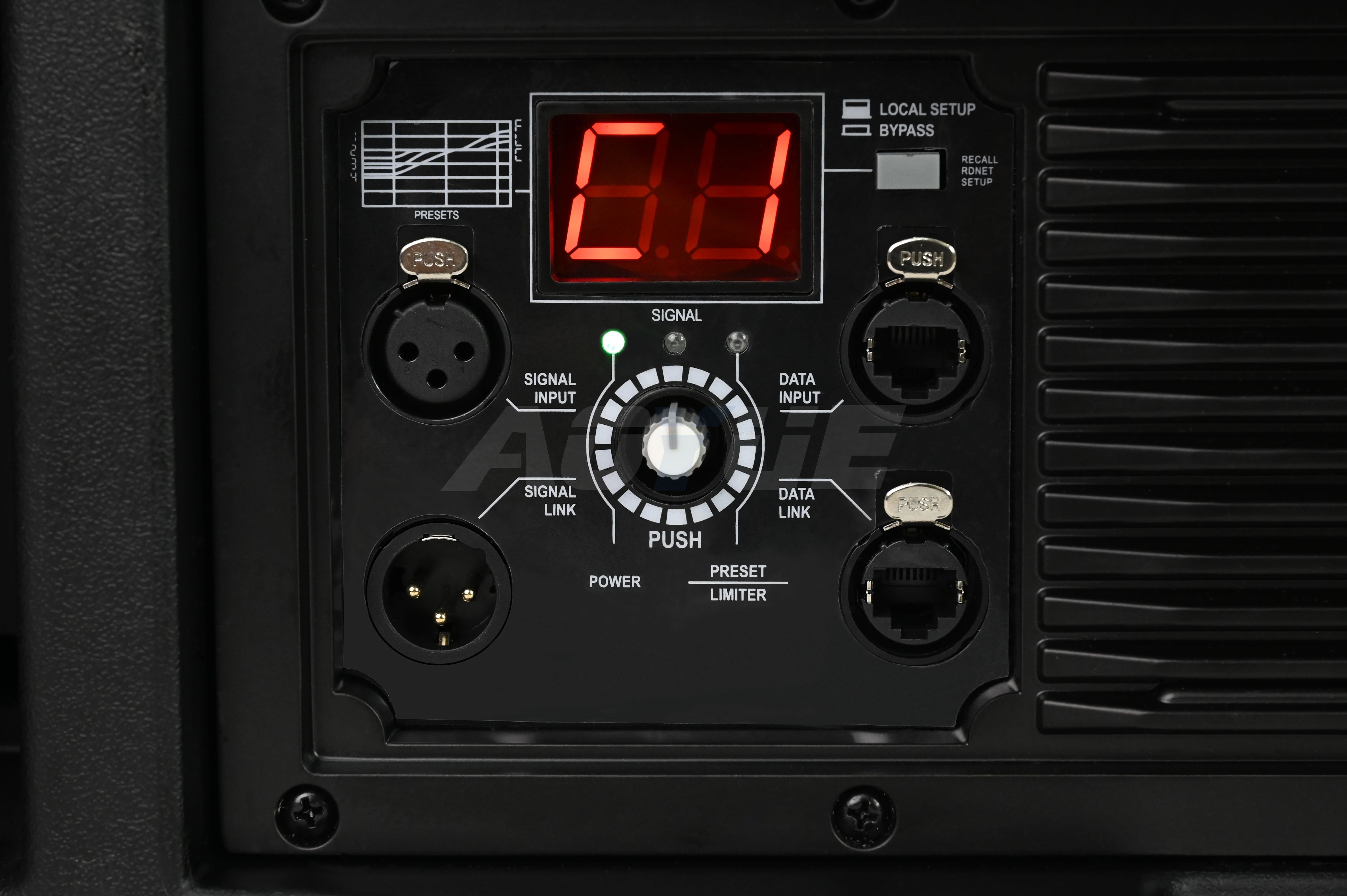

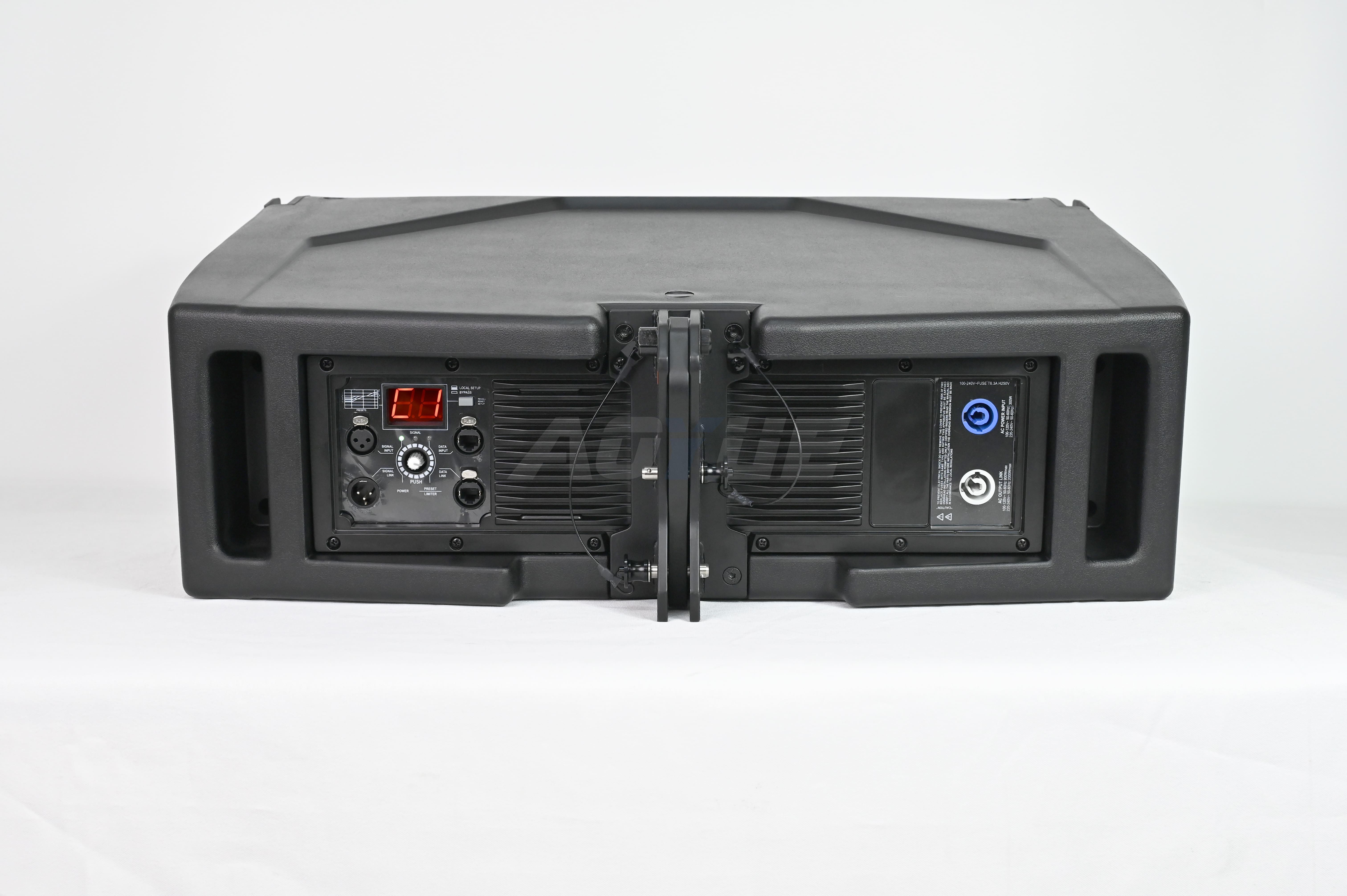

How to Connect and Operate the Software for the H-30A Active Board

Question

Accepted Answer

RDNet is a proprietary network control platform designed for the integrated monitoring and management of audio systems. Based on a robust network architecture, it consolidates system control, line array design, and comprehensive audio measurements into a single, powerful software package. Why Use RDNet? 1. Centralized Remote ControlEngineers and technicians can intuitively manage every device within the network—ranging from individual components to multiple groups.Access and monitor all critical settings in real-time via a single centralized interface.2. Comprehensive DSP ControlProvides complete DSP control over compatible devices.Features flexible configuration tools that enable rapid and precise adjustment of system response.3. Real-Time MonitoringDisplays a wide range of parameters in real-time, including fan speed, temperature, individual speaker tilt angles, VU meters, peak levels, and more.Operators have full control over the delay and equalization settings for each speaker (individually or in groups).4. Firmware and Preset ManagementEvery device acts as an active component of the system, capable of storing presets, receiving commands, and continuously transmitting status information.Supports cloud-based storage of project files and measurement data, allowing for retrieval from any location. For the H-30A and A-9006 models, customers requiring system configuration will need to utilize RDNet. (The HDL20A operates in a fixed mode and does not require configuration.) The rear panel of the enclosure features a dedicated RDNet Ethercon port, while the internal 48 kHz/32-bit DSP provides full access to all remote-controllable parameters (including Gain, EQ, Delay, FiRPHASE, etc.). Simply connecting the speakers to an RDNet Control 8 unit (or a compatible network switch) using a CAT5e/6 Ethernet cable enables real-time monitoring, grouping, tuning, and preset storage directly within the RDNet software.
