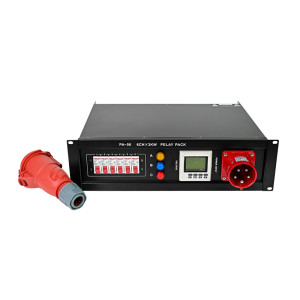

6 channels professional audio equipment power distributor

Categories	POWER DISTRIBUTOR
Brand	Sinbosen\| Audio sound system manufacturer
Model	PA-06
Panel Color	Iron Black
Power Output Channels	6 universal socket outputs
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

Overview：

The worldwide wide voltage input, 6 sets of high power universal socket output, independent air switch protection, durable phosphorous copper socket, manually controlled channel switch, three-phase waterproof plug and compact 3U body design provide a powerful, safe and easy-to-carry power solution, especially for applications requiring high power output and multi-device power supply.

Attribute	Details
Panel Color	Iron Black
Power Input Conditions	AC90-260V 50-60Hz, Three-phase (Three wires: Neutral, Hot, Ground)
Power Output Channels	6 universal socket outputs
Maximum Power Per Channel/Total Power (Reactive Power)	5000W/10000W Maximum Reactive Power
Output Power Sockets	Maximum 16A current, phosphor bronze material, standard universal sockets
Protection Features	Independent circuit breakers for each channel, automatically cut power in case of short circuit or overcurrent to protect audio equipment
Functional Features	Manual control for each channel on/off
Power Supply Specifications	Suitable for global voltage AC90-260V 50-60Hz
Main Cable Specification	Three-phase waterproof plug
Activation Type	Circuit breaker on/off
Dimensions	482MM (L) x 315MM (W) x 132MM (H) (Standard 3U)
Single Unit Packaging Size	528MM (L) x 518MM (W) x 180MM (H), Net Weight: 7.65KG, Gross Weight: 10.25KG
1 Unit Packed Weight & Dimensions	1 unit per pack, Gross Weight: 10.25KG, Outer Packaging Dimensions: 530mm (L) x 530mm (W) x 200mm (H)
