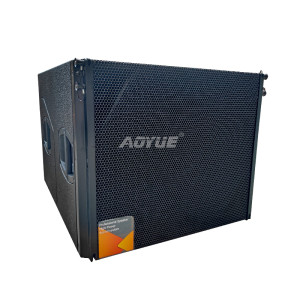

professional stage performance passive 18 inch and 12 inch subwoofer speaker

Share
Categories	SUBWOOFER SPEAKER
Trademark/Brand	Sinbosen\| Audio sound system manufacturer
Model	YT-SUB
Components	18"/12"
Dispersion	Cardioid
SPLmax	134 dB
Weight	52 kg / 115 lb
Update Time	Dec 19,2025

Contact Now

Favorites

Detail Information

Type		High performance flyable cardioid subwoofer
Frequency response (-5 dB standard)		39 Hz - 140 Hz
Maximum SPL		134 dB
Nominal impedance		8 Ω
Power handling capacity (RMS/peak 10 ms)		600/2400 W
Splay angle settings		0° and 2.5°
Components		1 x 18" driver with neodymium magnet 1 x 12" driver with neodymium magnet
Connections		2 x NLT4 F/M optional 2 x NL4 or 2 x EP5

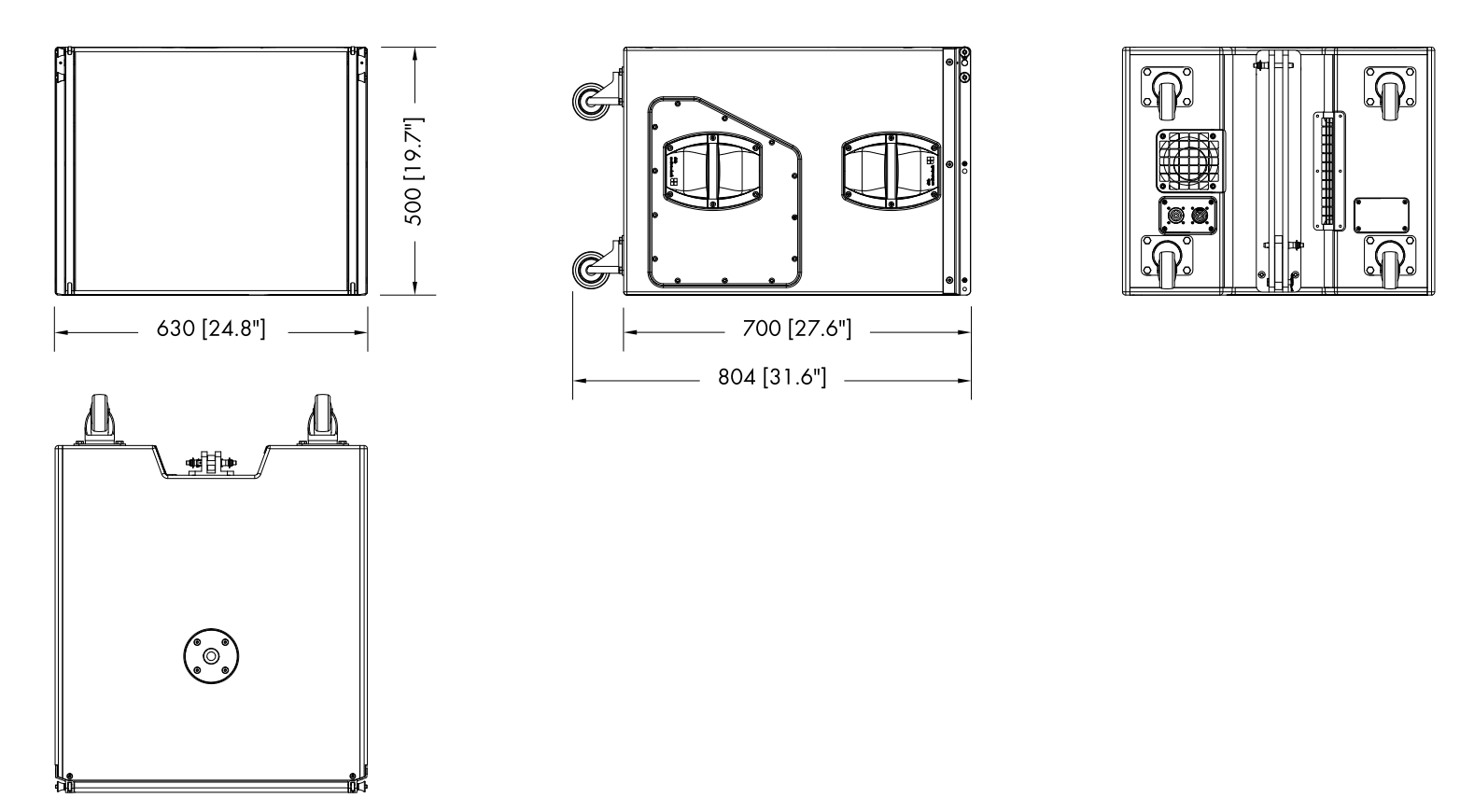

Dimensions (H x W x D)		500 x 630 x 700 / 804 mm 19.7 x 24.8 x 27.6 / 31.6"
Weight		52 kg/115 lb

Features:

1.High performance flyable cardioid subwoofer.

2.YT-sub subwoofer cardioid design 18 inch neodymium woofer (front), 12 inch neodymium woofer (rear).

3.First grade Russian birch plywood and muti-layer spray polyured waterproofing coating.

4.Speaker is protected by a rigid metal grill backed by an acoustically transparent foam, whilst the side panels incorporate two handles with four wheels mounted to the rear.

5.Can be combined with multiple multiple YT-08 speakers to form professional line array system.
