DSP Digital Amplifieir Output Limiter - Volt RMS- THR data

Update Time:2024/4/23

Sinbosen D series digital power amplifier is 1U ultra-thin, novel in appearance, lightweight, has a high-definition LCD screen and real-time temperature display. It can be connected to speakers and is suitable for various occasions such as touring performances and bars.

The wide voltage of 90V-270V makes it suitable for almost every country and widely used. The stable and reliable 2Ω driving capability is perfect for line array speaker systems.

Among them are the D4-2000 (DSP) that can be used with line array speakers and the high-power amplifier D2-4200 that is perfect for subwoofers, bringing reliable sound.

D series power amplifiers can be selected with or without DSP modules. The DSP amplifier adopts German ALLDSP system. Available for Windows, Mac and iOS systems.

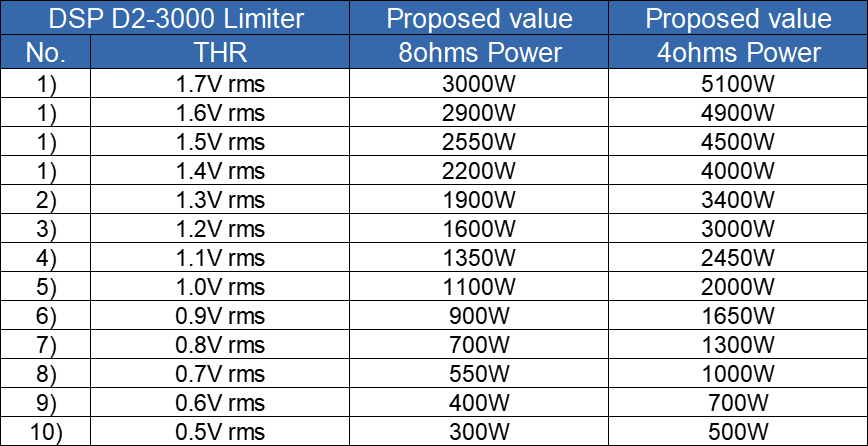

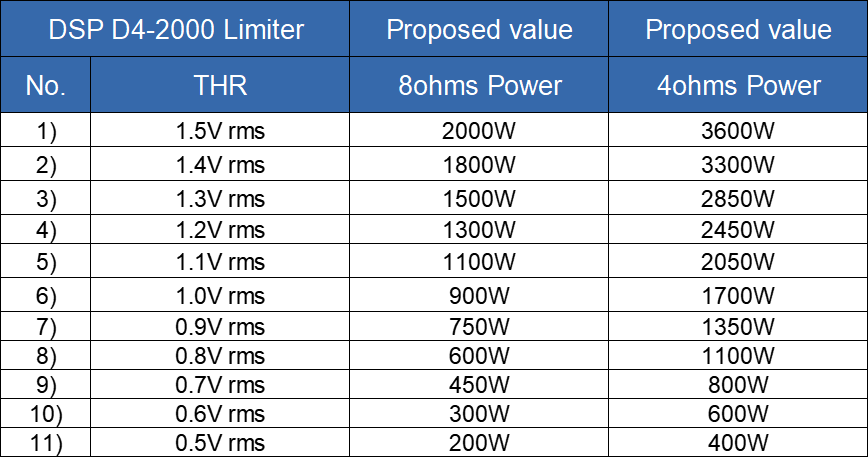

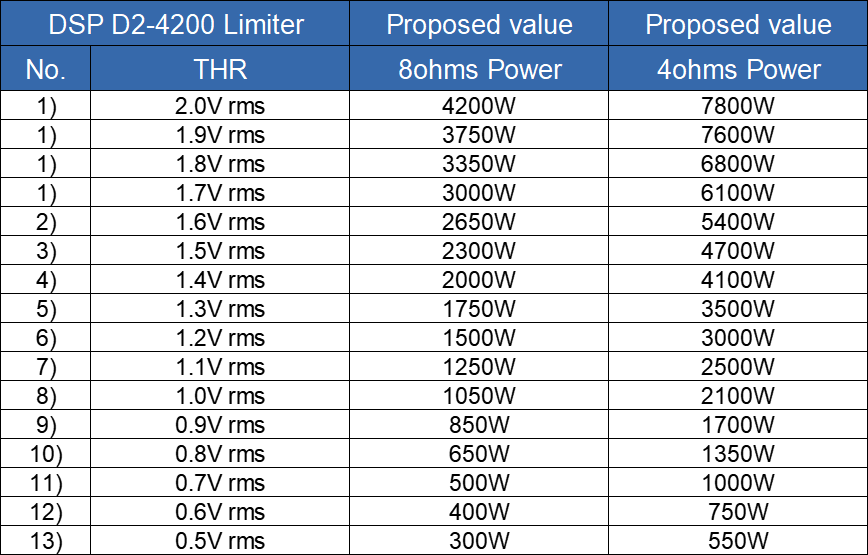

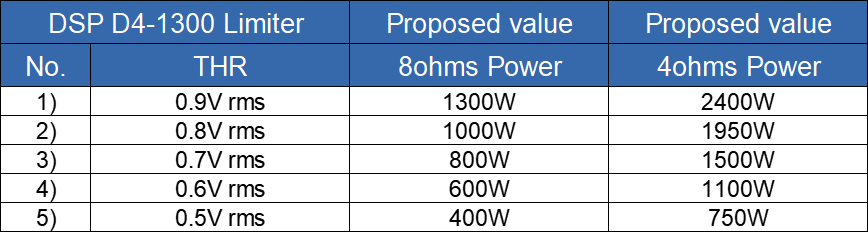

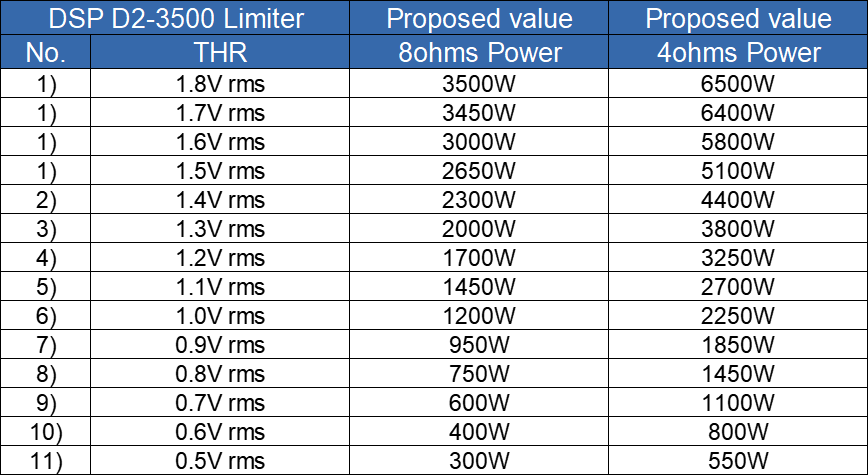

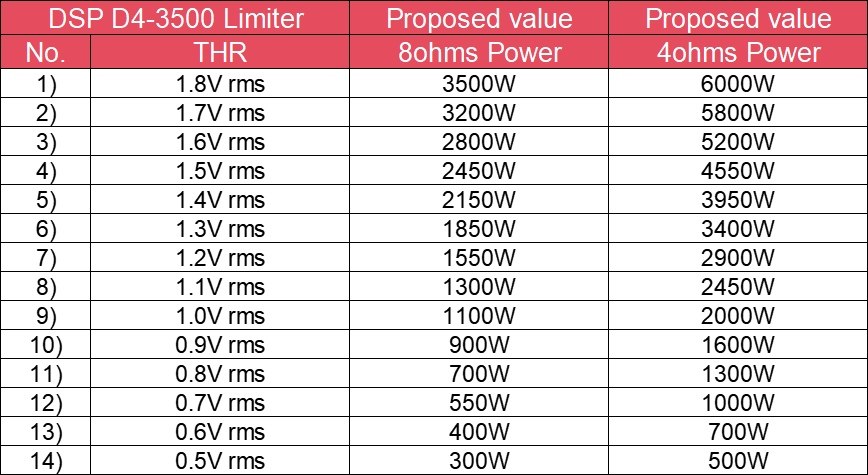

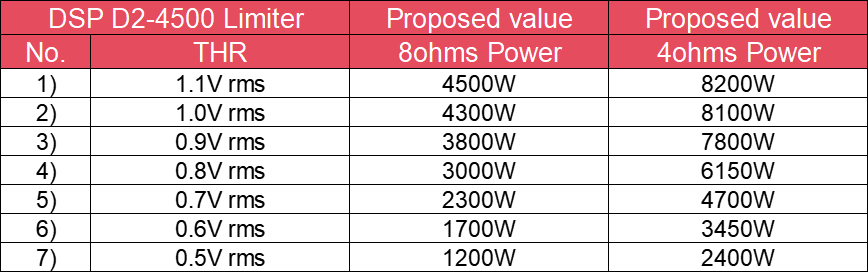

The following is a comparison table of product limiting setting parameters of D series DSP amplifiers:

Remind:
During adjust the limiter value of the DSP, when the yellow indicator light of the power amplifier does not light up,  then the value is correct.
