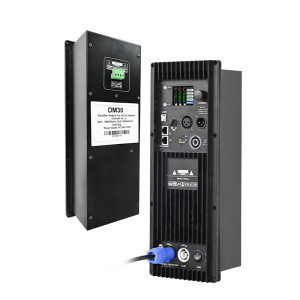

2 channel line array and subwoofer speaker powered board

Categories	ACCESSORIES
Brand	Sinbosen\| Audio sound system manufacturer
Model	powered board
Update Time	May 8,2025

Contact Now

Favorites

Detail Information

Noted:

To connect with the Windows Computer, please prepare one USB to RJ45 cable.

See below picture.

This DSP software not support for iOS system.

Model No.		DM9.5	DM10.5	DM12.5	DM15.5	DM20	DM24	DM30
Output power 1 KHZ/EIA	Stereo 8 Ω	900W+500W	1000W+500W	1200W+500W	1500W+500W	/	/	/
Output power 1 KHZ/EIA	Stereo 4 Ω	1550W+850W	1800W+900W	2150W+900W	2700W+900W	2000W	2400W	3000W
Frequency response (BYPASS-ON)		20 Hz - 20 kHz ± 0.5dB
Input sensitivity		1.1V	1.2V	1.3V	1.1V	1.2V	1.3V	1.3V
THD%: 1/8 RMS, 1KHZ		<0.05%	<0.05%	<0.05%	<0.05%	<0.05%	<0.05%	<0.05%
Slew rate(RMS,1KHZ)		>20V/µs	>20V/µs	>20V/µs	>20V/µs	>20V/µs	>20V/µs	>20V/µs
Dynamic Range		≥95dB	≥95dB	≥95dB	≥95dB	≥95dB	≥95dB	≥95dB
S/N ratio (A-weighted, RMS)		≥95dB	≥95dB	≥95dB	≥95dB	≥95dB	≥95dB	≥95dB
Input impedance		Balance:20K Ω, unbalanced:10K Ω
Output circuit design		SMPS+CLASS D
Cooling system		Low-noise , Variable speed fans; air flow from front to the rear
Power supply(PFC)		AC 90~265V ~50/60Hz
Dimensions (W×D×H)		142mm x 332mm x89mm
Weight		2Kg	2Kg	2Kg	2Kg	2Kg	2Kg	2Kg

FEATURES:

► Built-in 48K high-performance DSP processor with FIR function, RS485 networking or USB cable for adjustment.

►Bult-in LED screen display, easy to adjust function, such as Gain, Bridge,Delay and language.

►Speaker output: The module is 2channels, user can connect one channel to extra passive speaker.

► Power Supply: PFC Type 50-60Hz AC90~265V.

► Professional-grade audio CLASS D amplifier circuit.

► Fully sealed with its own shielding box, speakers can be installed without the need for a partition.

► Widely used in line array speakers, full-range and subwoofer combination sets. Such as Dual 8inch, 10inch, 12inch line array or full-range speaker, or 15inch, 18inch subwoofer.

►Built-in DSP Module, controlled by Computer for Equalizer, Delay, Volume and so on.

► With Temperature protection, short circuit protection, DC protection.
