2-way dual 10-inch passive professional line array speakers

2-way dual 10-inch passive professional line array speakers
2-way dual 10-inch passive professional line array speakers2-way dual 10-inch passive professional line array speakers2-way dual 10-inch passive professional line array speakers2-way dual 10-inch passive professional line array speakers2-way dual 10-inch passive professional line array speakers
Share
CategoriesLINE ARRAY SPEAKER
Trademark/BrandSinbosen| Audio sound system manufacturer
ModelKA10
Usable bandwidth (-10 dB)66 Hz – 20 kHz
Maximum SPL1140 dB
DownloadDownload pdf
Update TimeDec 10,2025
Detail Information
Usable bandwidth (-10 dB)
66 Hz – 20 kHz
Maximum SPL1
140 dB
Nominal directivity (-6 dB)
Enclosure: 10°
L-Fins : 110° / 70° symmetric ; 90° asymmetric
Transducers
LF: 1 × 10″ cone drivers
HF: 1 × 2.5″ diaphragm compression drivers
Acoustical load
LF: bass-reflex, L-Vents
HF: DOSC waveguide; Panflex
Nominal impedance
8 Ω
Connectors
2 × 4-point speakON
Rigging and handling
flush-fitting 2-point rigging system
2 × handles
8 × corner stop
2 × ground runner
Dimensions
581 mm ( 22.9 in) / 350 mm (13.8 in) / 367 mm (14.5 in)
Weight (net)
22 kg / 49 lb
Cabinet
premium grade Baltic beech and birch plywood
Front
Coated steel grill
Acoustically neutral 3D fabric
Rigging components
High grade steel with anti-corrosion coating
Overview

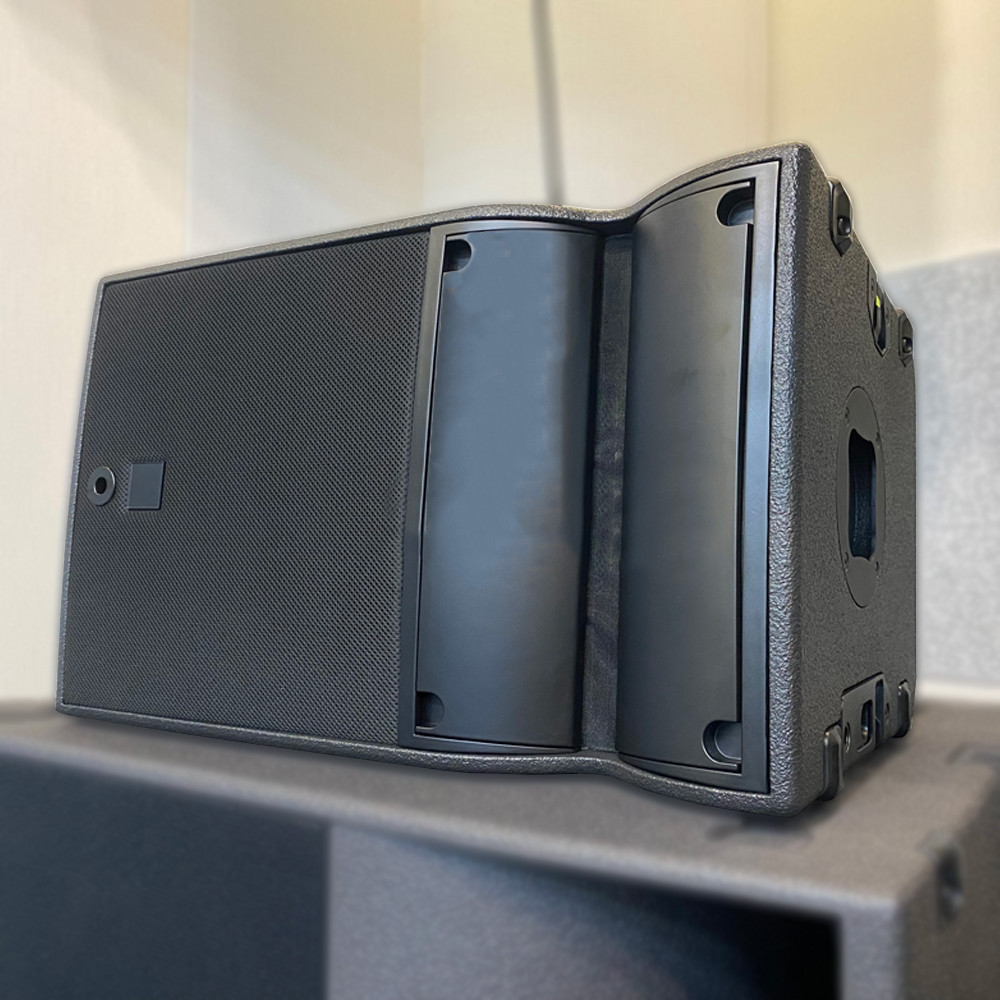

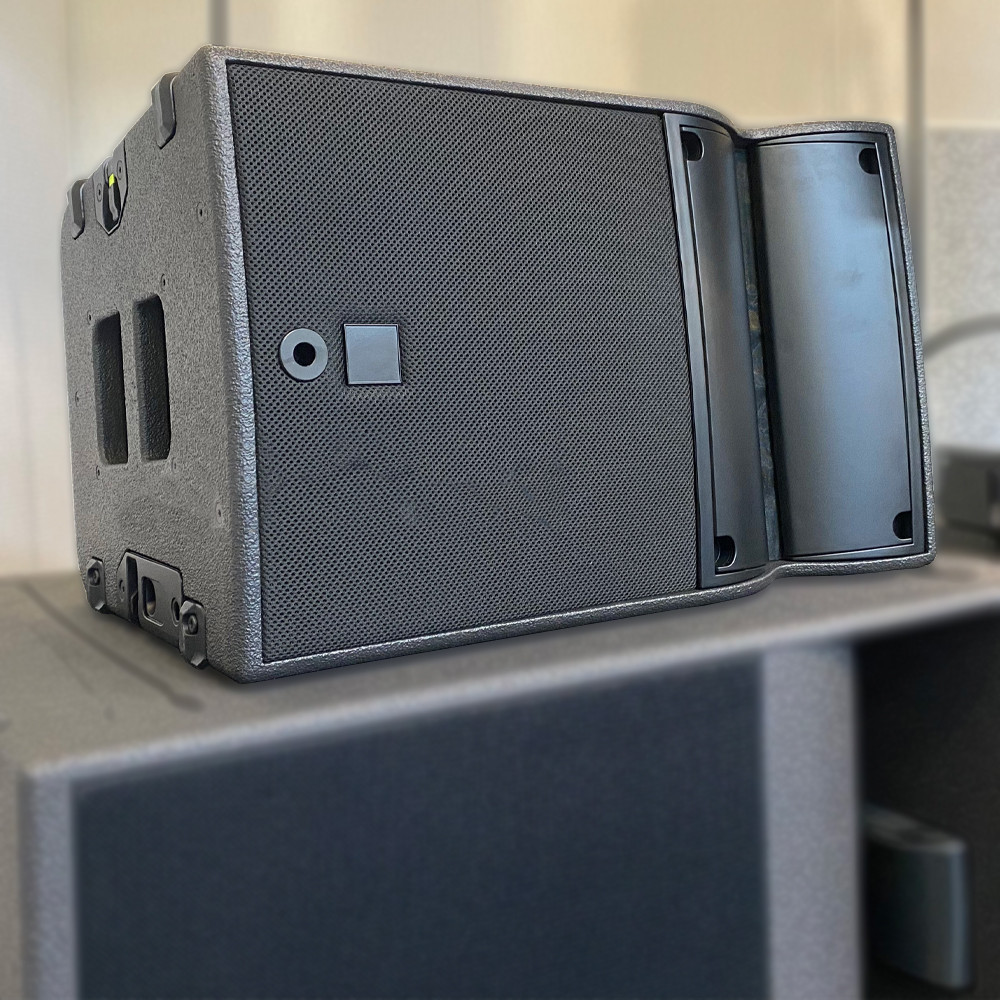

This 10-inch passive two-way compact line array loudspeaker is designed for mid-distance projection, flexible installation, and concert-quality sound reinforcement. It delivers high-fidelity sound with clear vocals and excellent music reproduction.
Feature:
1. Compact size, delivering high sound pressure level and excellent sound-to-volume ratio
2. Flexible installation options including vertical, horizontal, and hanging
3. High-quality neodymium magnet speaker and birch plywood
