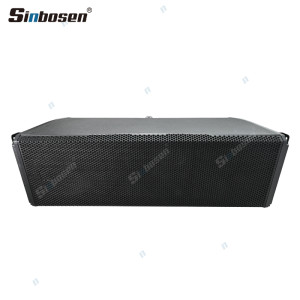

H-50A dual 12-inch Active Line Array System Class-D Amplifier DSP Active Speaker

Share
Categories	LINE ARRAY SPEAKER
Brand	Sinbosen\| Audio sound system manufacturer
Product Specifications	H-50A
Max SPL	143 dB
Frequency Response	40 Hz - 20kHz
Amplifier	class D,DSP
Peak power	8000 W peak
Download

Contact Now

Add to Wishlist

Detail Information

Frequency Response		40 Hz - 20000 Hz
Max SPL @ 1m		143 dB
Horizontal coverage angle		90°
Vertical coverage angle		10°
Midrange		4 x 6.0'' neo, 2.0'' v.c
Woofer		2 x 12'' neo, 3.0'' v.c
Input signal		bal/unbal
Input connectors		XLR, RDNet Ethercon
Output connectors		XLR, RDNet Ethercon
Input sensitivity		+4 dBu
Crossover Frequencies		200 Hz - 800 Hz
Protections		Thermal, RMS
Total Power		8000 W Peak
High frequencies		2000 W Peak
Mid frequencies		2000 W Peak
Low frequencies		4000 W Peak
Cooling		Convection
Connections		Powercon IN/OUT
Cabinet/Case Material		Baltic birch plywood
Hardware		Integrated Mechanics
Handles		2 side, 2 rear
Grille		Steel
Color		Black

Overview

The H-50A is an active 3-way line array module designed for large-scale indoor and outdoor events. Powered by a built-in 8000W PEAK / 4000W RMS Class-D four-channel amplifier, it delivers a sound pressure level of 143 dB SPL. With eight premium transducers on board, it provides outstanding playback quality, making it ideal for professional music applications. The 90 x 10-degree 4PATH waveguide, combined with the cabinet's symmetrical design, ensures optimal coverage.

Features

● 8000 Watt power, 4 x onboard amplifiers

● 143 dB max SPL

● RDNet networked management and monitoring

● 48 kHz, 32 bit DSP processing

● 2 x 12” neodymium woofers

● 4 x 6" neodymium woofer midrange

● 2 x 3” titanium dome neodymium compression drivers

● Remarkably compact and lightweight
