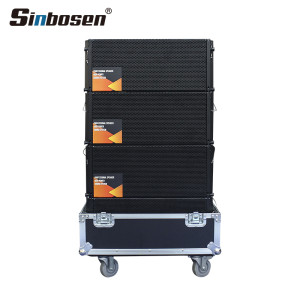

High performance 2-way passive line array loudspeaker dual 8-inch speaker
Detail Information
| Type | High performance 2-way passive line array loudspeaker | ||||
| Frequency response (-5 dB standard) | 54 Hz - 19 kHz | ||||
| Maximum SPL | 139 dB | ||||
Nominal impedance | 8 Ω | ||||
| Power handling capacity (RMS/peak 10 ms) | 400/1600W | ||||
Nominal dispersion angle (horizontal) | 80° | ||||
Splay angle settings | 0° - 14° (1° increment) | ||||
Components | 2 x 8" driver with neodymium magnet | ||||
1.4" exit compression driver | |||||
passive crossover network | |||||
Connections | 2 x NLT4 F/M
optional 2 x NL4 or 2 x EP5 | ||||
Dimensions (H x W x D) | 257 x 630 x 375 mm
10 x 24.8 x 14.8" | ||||
Weight | 20 kg/44 lb | ||||
2-Way double 8inch line array:
1.High performance 2-way passive line array loudspeaker.
2.2x8" LF; 2X1.4"HF neodymium drivers.
3.Vertical line array with a vertical tilt angle of 0°to 14°and a separation of 1°.
4.Weather-resistant Polyurea paint,can withstand all kinds of friction and collisions.
5.Can be combined with multiple multiple Y-SUB speakers to form professional line array system.
