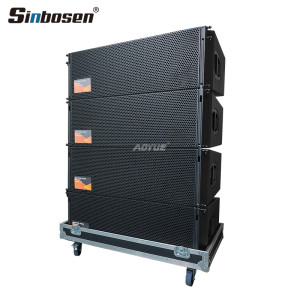

3-Way double 12 inch professional line array speakers

Share
Categories	LINE ARRAY SPEAKER
Trademark/Brand	Sinbosen\| Audio sound system manufacturer
Model	JT-08
Components	2 x 12"/10"/2 x 1.4"
Dispersion	80°
SPLmax	145 dB
Weight	60 kg / 132 lb
Download
Update Time	Dec 19,2025

Detail Information

Frequency response (-5 dB standard)		48 Hz - 17 kHzHz
Frequency response (-5 dB CUT mode)		85 Hz - 17 kHz
Configuration		Large format 3-way line array loudspeaker
Nominal impedance		6 Ω (LF) / 12 Ω (MHF)
Power handling capacity LF (RMS/peak 10 ms)		500/2000 W
Power handling capacity MHF (RMS/peak 10 ms)		200/800 W
Nominal dispersion angle (h x v)		80°²
Splay angle settings		0 - 7° (1° increment)
Components		2 x 12" driver / 1 x 10" driver 2 x 1.4" exit compression driver passive crossover network
Connections		2 x NLT4 F/M optional 2 x EP5 or 2 x NL8
Dimensions (H x W x D)		360 x 1100 x 570 mm 14.2 x 43.3 x 22.4"
Weight		60 kg/132 lb
