V-932 Active 12 inch line array speaker lightweight

V-932 Active 12 inch line array speaker lightweight

V-932 Active 12 inch line array speaker lightweight
V-932 Active 12 inch line array speaker lightweightV-932 Active 12 inch line array speaker lightweightV-932 Active 12 inch line array speaker lightweightV-932 Active 12 inch line array speaker lightweightV-932 Active 12 inch line array speaker lightweight
CategoriesLINE ARRAY SPEAKER
BrandSinbosen| Audio sound system manufacturer
ModelV-932
TypeTwo-way line array speaker
Frequency Response75 Hz - 20 kHz
ApplicationSTAGE MONITOR ,STUDIO MONITOR
Voltage90-130V or 200-240V
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information
Specification
V-932 Specification
Frequency Range (-10 dB):57 Hz - 20 kHz
Frequency Response (±3 dB):75 Hz - 20 kHz
Coverage pattern:100° x 15° nominal (horizontal x vertical)
800W
Power (Continuous/Program/Peak): Passive: 800 W / 1600 W / 3200 W
Bi-amp LF: 800 W / 1600 W / 3200 W
Bi-amp HF: 75 W / 150 W / 300 W
Maximum System SPL :Passive: 130 dB; Bi-amp LF: 130 dB; Bi-amp HF: 139 dB
Neodymium magnet
LF: 1 x 2262HPL, dual voice coil
HF: 3 x 2408H, 1.5'' diaphram
95dB
Black Emery paint
Dimensions (H x W x D):343 mm x 597 mm x 376 mm
Weight (KG):24kg
Feature:
●Neodymium magnets differentially drive woofers for high power handling and low weight.
●Professional compression driver design and unprecedented array coherence.
●Double angle rod socket, aiming flexible. The speaker can be mounted to a 35mm pole or tripod.
●Integrated rigging hardware for easy attachment of enclosures and optional array frames.
Woofer
Tweeter

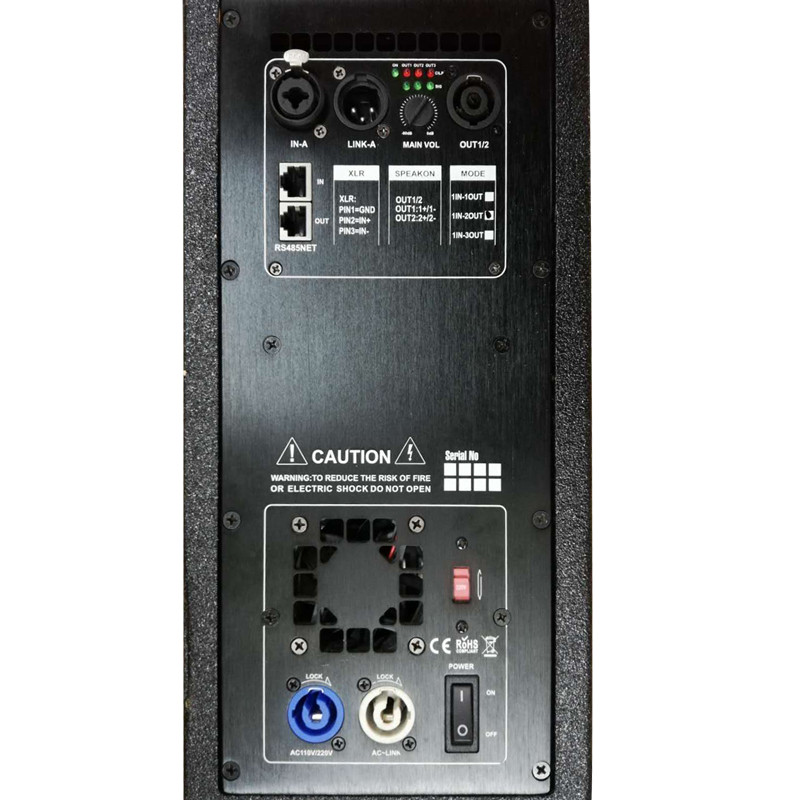

Amplifier board
Paper cones
Bouncing waves
Dual voice coil
12 inch Line array
VRX 932
Line aray speaker box
2 way full range speaker
